Adaptall 45* Din X Male Bspp Adjustable 5058L-12-06

Specifications

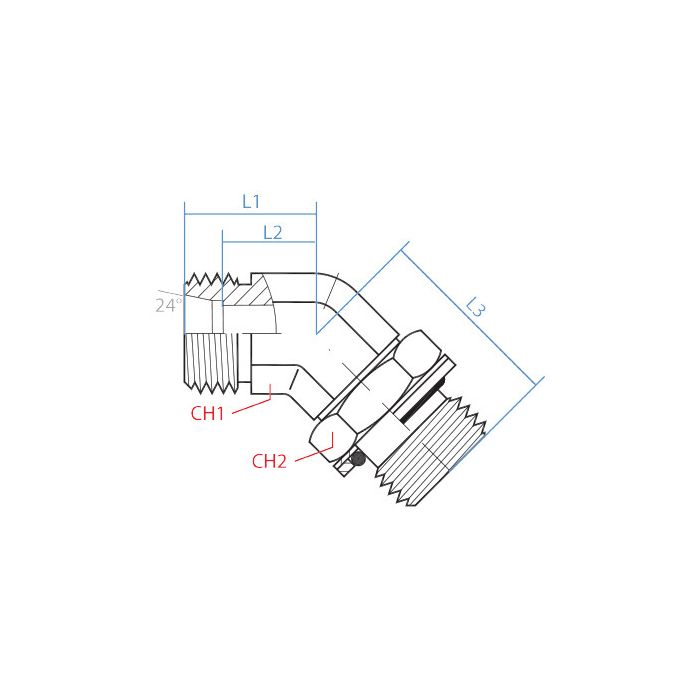

CH1 Width 19mm	CH2 Width 24mm	L1 Length 21mm	L2 Length 14mm	L3 Length 34mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M18 X 1.5	Side 1 Gender M	Side 1 Size L12	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058L-12-06	Product Weight 0.20 lbs

Product Questions & Answers 2

Product Questions & Answers

What size wrenches do I need to tighten this thing down?

Question by: Vince S on Dec 17, 2025, 10:47 AM

You'll need a 19mm wrench for one side and a 24mm wrench for the other.

Answer by: Customer Support on Dec 19, 2025, 6:36 AM

fitting's got a 45 degree angle on it -- does that elbow stay put once you torque it down, or is it locked into one position before you even get it threaded in?

Question by: Duane K on Mar 26, 2026, 12:57 PM

The BSPP end on this fitting is adjustable, meaning you can rotate it to whatever orientation works best for your line routing before you apply final torque. That's the whole point of the adjustable design. Once you're happy with the angle, you torque it down and it stays. The DIN tube side connects at a fixed 45 degrees, so the elbow geometry itself doesn't change, but the rotational position of the port end is yours to set during installation.

Answer by: Customer Support on Mar 28, 2026, 9:59 AM
