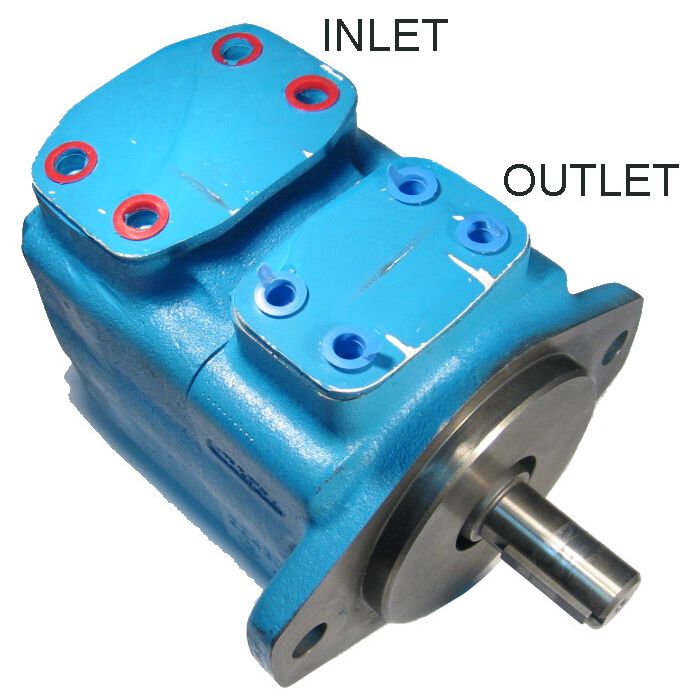

main product photo

45VQ Series Vane Pump, 60 Ring Size, 1-1/2 Straight Keyed Shaft, Outlet 90 deg CCW from Outlet, CCW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
11.80
Displacement
11.8
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2500
Maximum Pressure
2500
Port Location
90 deg CCW from Outlet
Rated Flow
91.94
Rated Flow
91.94
Ring Size
60
Ring Size
60
Rotation
CCW
Seal Material
Buna-N
Series
45VQ
Shaft
1-1/2 Straight Keyed
Shaft
1-1/2 Straight Keyed
Special Features
None
Speed Rating
2200 RPM
Speed Rating
2200 RPM
Supplier Part Number
416458-8
Product Weight
75.00 lbs
Product Questions & Answers 2

Product Questions & Answers

running this on a dump truck hydraulic system, does the rotation and port setup work for a direct drive PTO situation where the inlet needs to come in from a specific angle?
Question by: Brett M on Jul 11, 2025, 1:32 PM
CCW rotation is built into this pump, and the inlet port sits 90 degrees counterclockwise from the outlet. On a dump truck application that's actually a pretty common configuration for keeping hydraulic connections tight without a bunch of awkward fittings. The inlet is a 3-inch SAE 4-bolt flange and the outlet runs 1-1/2 inch, same bolt pattern. Mounting is a 2-bolt SAE C flange, so as long as your PTO matches that footprint and spins counterclockwise, the geometry should work well for a clean install.
Answer by: Customer Support on Jul 13, 2025, 6:04 AM
got a pump stamped 45VQ60A86D20-L, is this the same one or am i mixing stuff up
Question by: Norm R on Sep 30, 2025, 7:30 PM
Match-up is straightforward here because the model number is called out as 45VQ60A86D20-L, in the 45VQ series with a 60 ring size, CCW rotation, and a 1-1/2 straight keyed shaft.
Answer by: Customer Support on Oct 2, 2025, 12:24 PM

Similar Products

Part Number Model Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Buy Now
416458-2 45VQ60A86B20 1-1/2 Straight Keyed 11.8 60 91.94 90 deg CW from Outlet CW 2500 2200 RPM
416458-3 45VQ60A86C20 1-1/2 Straight Keyed 11.8 60 91.94 in-Line with Outlet CW 2500 2200 RPM
416458-4 45VQ60A86D20 1-1/2 Straight Keyed 11.8 60 91.94 90 deg CCW from Outlet CW 2500 2200 RPM
416458-5 45VQ60A86A20-L 1-1/2 Straight Keyed 11.8 60 91.94 Opposite Outlet CCW 2500 2200 RPM
416458-7 45VQ60A86C20-L 1-1/2 Straight Keyed 11.8 60 91.94 in-Line with Outlet CCW 2500 2200 RPM
416458-8 45VQ60A86D20-L 1-1/2 Straight Keyed 11.8 60 91.94 90 deg CCW from Outlet CCW 2500 2200 RPM
420616-2 45VQ42A11B20 14 Tooth SAE D Splined 8.46 42 65.92 90 deg CW from Outlet CW 2500 2200 RPM
420616-3 45VQ42A11C20 14 Tooth SAE D Splined 8.46 42 65.92 in-Line with Outlet CW 2500 2200 RPM
420616-4 45VQ42A11D20 14 Tooth SAE D Splined 8.46 42 65.92 90 deg CCW from Outlet CW 2500 2200 RPM
420616-5 45VQ42A11A20-L 14 Tooth SAE D Splined 8.46 42 65.92 Opposite Outlet CCW 2500 2200 RPM
420616-7 45VQ42A11C20-L 14 Tooth SAE D Splined 8.46 42 65.92 in-Line with Outlet CCW 2500 2200 RPM
420617-2 45VQ50A11B20 14 Tooth SAE D Splined 9.9 50 77.14 90 deg CW from Outlet CW 2500 2200 RPM
420617-3 45VQ50A11C20 14 Tooth SAE D Splined 9.9 50 77.14 in-Line with Outlet CW 2500 2200 RPM
420617-4 45VQ50A11D20 14 Tooth SAE D Splined 9.9 50 77.14 90 deg CCW from Outlet CW 2500 2200 RPM
420617-5 45VQ50A11A20-L 14 Tooth SAE D Splined 9.9 50 77.14 Opposite Outlet CCW 2500 2200 RPM
420617-6 45VQ50A11B20-L 14 Tooth SAE D Splined 9.9 50 77.14 90 deg CW from Outlet CCW 2500 2200 RPM
420617-7 45VQ50A11C20-L 14 Tooth SAE D Splined 9.9 50 77.14 in-Line with Outlet CCW 2500 2200 RPM
420618-2 45VQ60A11B20 14 Tooth SAE D Splined 11.8 60 91.94 90 deg CW from Outlet CW 2500 2200 RPM
420618-3 45VQ60A11C20 14 Tooth SAE D Splined 11.8 60 91.94 in-Line with Outlet CW 2500 2200 RPM
420618-4 45VQ60A11D20 14 Tooth SAE D Splined 11.8 60 91.94 90 deg CCW from Outlet CW 2500 2200 RPM
420618-5 45VQ60A11A20-L 14 Tooth SAE D Splined 11.8 60 91.94 Opposite Outlet CCW 2500 2200 RPM
420618-6 45VQ60A11B20-L 14 Tooth SAE D Splined 11.8 60 91.94 90 deg CW from Outlet CCW 2500 2200 RPM
420618-7 45VQ60A11C20-L 14 Tooth SAE D Splined 11.8 60 91.94 in-Line with Outlet CCW 2500 2200 RPM
421965-2 45VQ42A86B20 1-1/2 Straight Keyed 8.46 42 65.92 90 deg CW from Outlet CW 2500 2200 RPM
421965-3 45VQ42A86C20 1-1/2 Straight Keyed 8.46 42 65.92 in-Line with Outlet CW 2500 2200 RPM
421965-4 45VQ42A86D20 1-1/2 Straight Keyed 8.46 42 65.92 90 deg CCW from Outlet CW 2500 2200 RPM
421965-5 45VQ42A86A20-L 1-1/2 Straight Keyed 8.46 42 65.92 Opposite Outlet CCW 2500 2200 RPM
421965-7 45VQ42A86C20-L 1-1/2 Straight Keyed 8.46 42 65.92 in-Line with Outlet CCW 2500 2200 RPM
421966-2 45VQ50A1B20 1-1/4 Straight Keyed 9.9 50 77.14 90 deg CW from Outlet CW 2500 2200 RPM
421966-3 45VQ50A1C20 1-1/4 Straight Keyed 9.9 50 77.14 in-Line with Outlet CW 2500 2200 RPM
421966-4 45VQ50A1D20 1-1/4 Straight Keyed 9.9 50 77.14 90 deg CCW from Outlet CW 2500 2200 RPM
421966-5 45VQ50A1A20-L 1-1/4 Straight Keyed 9.9 50 77.14 Opposite Outlet CCW 2500 2200 RPM
421966-7 45VQ50A1C20-L 1-1/4 Straight Keyed 9.9 50 77.14 in-Line with Outlet CCW 2500 2200 RPM
421967-2 45VQ60A1B20 1-1/4 Straight Keyed 11.8 60 91.94 90 deg CW from Outlet CW 2500 2200 RPM
421967-3 45VQ60A1C20 1-1/4 Straight Keyed 11.8 60 91.94 in-Line with Outlet CW 2500 2200 RPM
421967-4 45VQ60A1D20 1-1/4 Straight Keyed 11.8 60 91.94 90 deg CCW from Outlet CW 2500 2200 RPM
421967-5 45VQ60A1A20-L 1-1/4 Straight Keyed 11.8 60 91.94 Opposite Outlet CCW 2500 2200 RPM
421967-7 45VQ60A1C20-L 1-1/4 Straight Keyed 11.8 60 91.94 in-Line with Outlet CCW 2500 2200 RPM
432647-2 45VQ42A1B20 1-1/4 Straight Keyed 8.46 42 65.92 90 deg CW from Outlet CW 2500 2200 RPM
432647-3 45VQ42A1C20 1-1/4 Straight Keyed 8.46 42 65.92 in-Line with Outlet CW 2500 2200 RPM
432647-4 45VQ42A1D20 1-1/4 Straight Keyed 8.46 42 65.92 90 deg CCW from Outlet CW 2500 2200 RPM
432647-5 45VQ42A1A20-L 1-1/4 Straight Keyed 8.46 42 65.92 Opposite Outlet CCW 2500 2200 RPM
432647-7 45VQ42A1C20-L 1-1/4 Straight Keyed 8.46 42 65.92 in-Line with Outlet CCW 2500 2200 RPM
433252-2 45VQ50A86B20 1-1/2 Straight Keyed 9.9 50 77.14 90 deg CW from Outlet CW 2500 2200 RPM
433252-3 45VQ50A86C20 1-1/2 Straight Keyed 9.9 50 77.14 in-Line with Outlet CW 2500 2200 RPM
433252-4 45VQ50A86D20 1-1/2 Straight Keyed 9.9 50 77.14 90 deg CCW from Outlet CW 2500 2200 RPM
433252-5 45VQ50A86A20-L 1-1/2 Straight Keyed 9.9 50 77.14 Opposite Outlet CCW 2500 2200 RPM
433252-7 45VQ50A86C20-L 1-1/2 Straight Keyed 9.9 50 77.14 in-Line with Outlet CCW 2500 2200 RPM
629213-2 45VQ57A1B20 1-1/4 Straight Keyed 10.97 57 85.48 90 deg CW from Outlet CW 2500 2200 RPM
629213-3 45VQ57A1C20 1-1/4 Straight Keyed 10.97 57 85.48 in-Line with Outlet CW 2500 2200 RPM
629213-4 45VQ57A1D20 1-1/4 Straight Keyed 10.97 57 85.48 90 deg CCW from Outlet CW 2500 2200 RPM
629213-5 45VQ57A1A20-L 1-1/4 Straight Keyed 10.97 57 85.48 Opposite Outlet CCW 2500 2200 RPM
629213-7 45VQ57A1C20-L 1-1/4 Straight Keyed 10.97 57 85.48 in-Line with Outlet CCW 2500 2200 RPM
416458-1 45VQ60A86A20 1-1/2 Straight Keyed 11.8 60 91.94 Opposite Outlet CW 2500 2200 RPM
420616-1 45VQ42A11A20 14 Tooth SAE D Splined 8.46 42 65.92 Opposite Outlet CW 2500 2200 RPM
420617-1 45VQ50A11A20 14 Tooth SAE D Splined 9.9 50 77.14 Opposite Outlet CW 2500 2200 RPM
420618-1 45VQ60A11A20 14 Tooth SAE D Splined 11.8 60 91.94 Opposite Outlet CW 2500 2200 RPM
421965-1 45VQ42A86A20 1-1/2 Straight Keyed 8.46 42 65.92 Opposite Outlet CW 2500 2200 RPM
421966-1 45VQ50A1A20 1-1/4 Straight Keyed 9.9 50 77.14 Opposite Outlet CW 2500 2200 RPM
421967-1 45VQ60A1A20 1-1/4 Straight Keyed 11.8 60 91.94 Opposite Outlet CW 2500 2200 RPM
432647-1 45VQ42A1A20 1-1/4 Straight Keyed 8.46 42 65.92 Opposite Outlet CW 2500 2200 RPM
433252-1 45VQ50A86A20 1-1/2 Straight Keyed 9.9 50 77.14 Opposite Outlet CW 2500 2200 RPM
629213-1 45VQ57A1A20 1-1/4 Straight Keyed 10.97 57 85.48 Opposite Outlet CW 2500 2200 RPM
