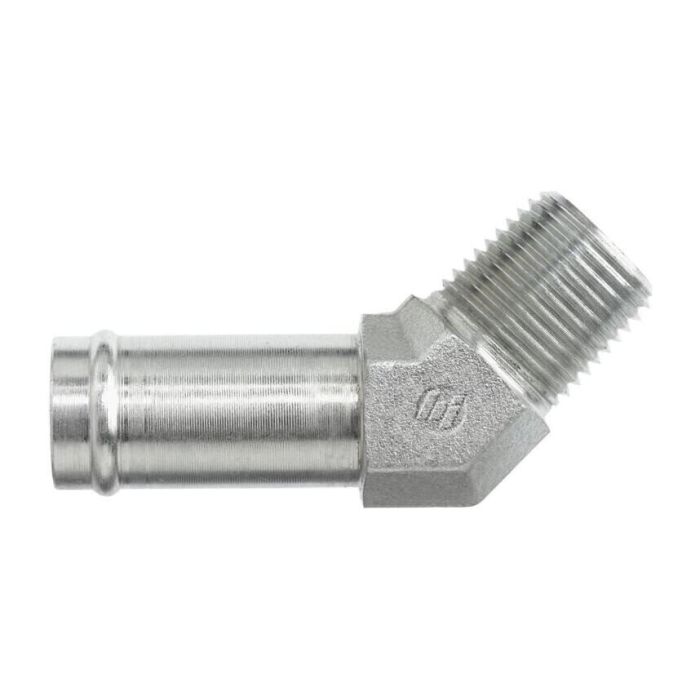

16HB-16MP 45 DEG ELBOW

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 4503-16-16-FG	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

What kind of threads are we working with on each end of this elbow fitting?

Question by: Tony P on Jul 30, 2025, 6:03 PM

One end is a hose barb connection with a 1-inch tube OD, and the other end is a 1-inch male NPTF thread running 11-1/2 threads per inch, built to SAE J476 spec. The 45-degree angle between the two makes routing hose assemblies a lot easier when you're working in tight quarters or need to change direction without a hard bend.

Answer by: Customer Support on Jul 31, 2025, 6:26 PM

trying to swap out an elbow on a hose line, is this one hose barb on one end and male pipe thread on the other?

Question by: Cody C on Oct 19, 2025, 7:33 PM

On the B1 side you get a hose barb connection, and on the B2 side it is a male NPTF pipe thread. The male thread is 1-11-1/2 and it follows SAE J476.

Answer by: Customer Support on Oct 21, 2025, 3:06 PM
