Adaptall 45* Din X Male Bspp Adjustable 5058L-10-04

Specifications

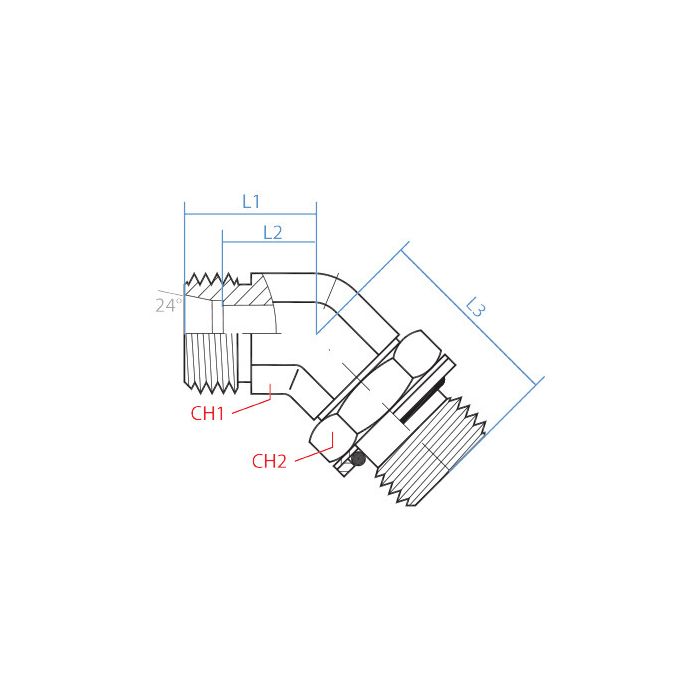

CH1 Width 14mm	CH2 Width 19mm	L1 Length 20mm	L2 Length 13mm	L3 Length 31.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058L-10-04	Product Weight 0.15 lbs

Product Questions & Answers 2

Product Questions & Answers

Is this the right fitting to connect a DIN tube to a BSPP port at a 45-degree angle?

Question by: Curt T on Jun 10, 2025, 9:12 AM

Yes, this fitting does exactly that. It's designed to connect an M16 x 1.5 DIN tube to a G 1/4-19 male BSPP adjustable port with a 45-degree elbow.

Answer by: Customer Support on Jun 11, 2025, 9:38 AM

fitting's got a 45 on it, does that adjustable BSPP side let you spin it to where you need it before you lock it down, or is that angle fixed once you thread it in?

Question by: Tony M on Feb 16, 2026, 1:58 PM

The BSPP side is adjustable, meaning you can rotate it during assembly to get the line angle where you want it before finalizing the connection. That's one of the practical advantages of this style of fitting. The 45-degree elbow geometry is fixed, but the rotational freedom on the BSPP port gives you enough flexibility to work around tight routing situations without having to force the line into an awkward position.

Answer by: Customer Support on Feb 17, 2026, 6:36 PM
