45* Mjic X Mbspt Elbow

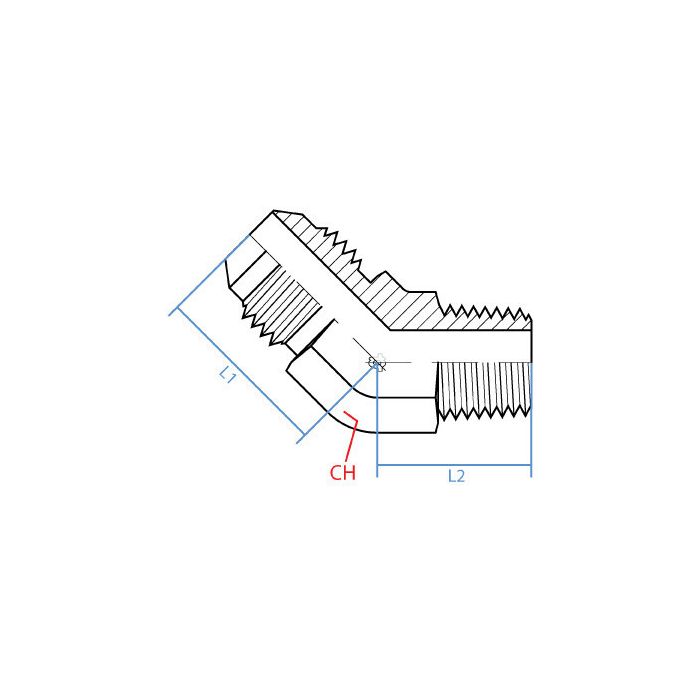

CH Width 14mm	L1 Length 21mm	L2 Length 21mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout R 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9064-06-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Will this elbow work to connect a 3/8" JIC fitting to a 1/4" BSPT fitting at a 45-degree angle?

Question by: Rex T on May 19, 2025, 11:31 AM

This 45-degree elbow adapter is specifically designed to connect a 3/8" male JIC fitting to a 1/4" male BSPT fitting, making it suitable for angled transitions between JIC and BSPT thread standards.

Answer by: Customer Support on May 21, 2025, 7:32 AM
