45*Mjic X Male Metric Adj Elb

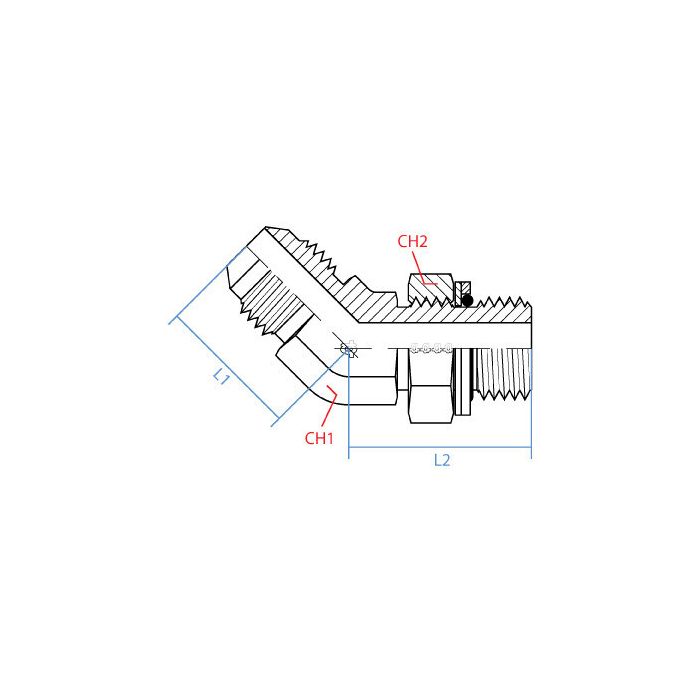

CH1 Width 22mm	CH2 Width 24mm	L1 Length 23mm	L2 Length 32.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9066-10-18	Product Weight 0.30 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to swap out an elbow on a line, is this one the 7/8-14 UNF JIC male on one end and M18 x 1.5 male metric on the other?

Question by: Neil M on Oct 22, 2025, 9:37 AM

On the JIC side, you get a 7/8 - 14 UNF male connection (5/8 inch size). The other end is a male metric M18 x 1.5, listed as an 18 mm size, and the fitting is a 45 degree adjustable elbow.

Answer by: Customer Support on Oct 23, 2025, 6:24 PM

what's the thread spec on the metric side of this fitting, and is it a standard pitch or something unusual?

Question by: Chad C on Jul 14, 2025, 8:44 PM

M18 x 1.5 is the callout on the metric end, which is a fine pitch and fairly common in European-style hydraulic equipment. The male metric side is adjustable, so you can clock it to the angle you need once it's in place. The JIC side runs 7/8-14 UNF, which is a standard 37-degree flare connection at 5/8" size.

Answer by: Customer Support on Jul 16, 2025, 6:25 AM
