45* Male Orfs X Mbspp Adj. Elb

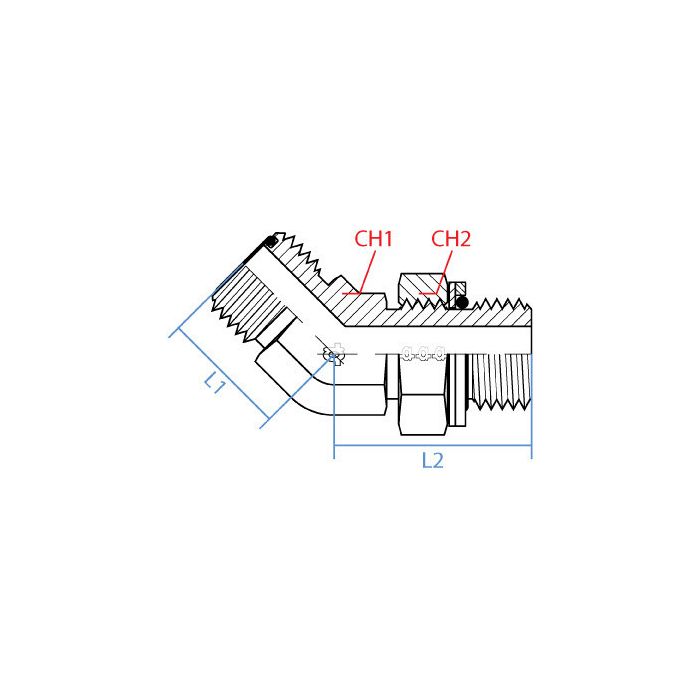

CH1 Width 18.5mm	CH2 Width 18.5mm	L1 Length 19mm	L2 Length 30mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6058-04-04	Product Weight 0.99 lbs

Product Questions & Answers 2

Product Questions & Answers

Will this elbow fitting hold up okay in a hydraulic system on a piece of farm equipment?

Question by: Warren R on Sep 29, 2025, 4:16 PM

Steel construction gives this fitting good durability for use in industrial hydraulic environments.

Answer by: Customer Support on Oct 1, 2025, 9:24 AM

got a hose end with 9/16-18 ORFS and my port is G 1/4-19 BSPP, is this the right adapter or am i mixing stuff up

Question by: Sheila R on Nov 3, 2025, 6:18 PM

For that exact mix of threads, it matches up. One side is a 1/4 inch Male ORFS with 9/16-18 UNF threads, and the other side is a 1/4 inch Male BSPP with G 1/4-19 threads, so it is meant to transition between those two standards.

Answer by: Customer Support on Nov 5, 2025, 1:59 PM
