Adaptall 45* Elb. Mbspp X Adjust.Mbspp 2611944

Specifications

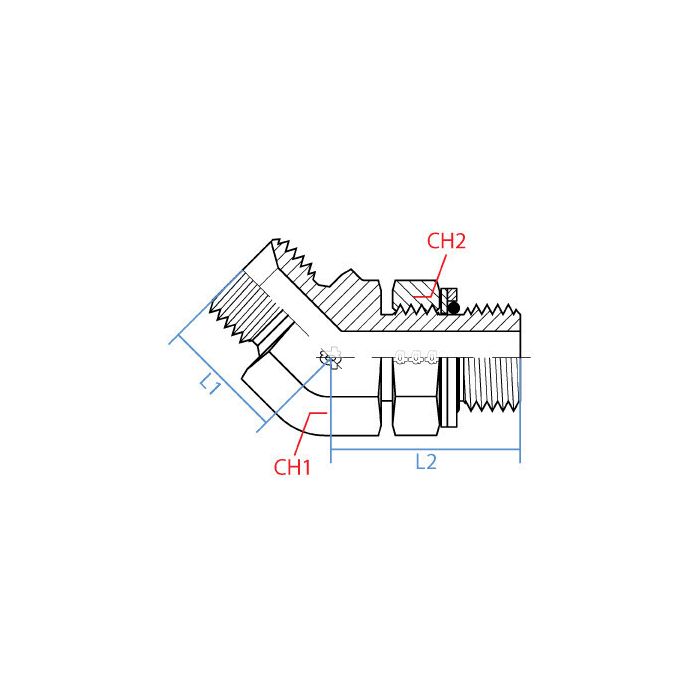

CH1 Width 13.5mm	CH2 Width 19mm	L1 Length 29.5mm	L2 Length 21.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9051-04-04	Product Weight 0.10 lbs

Product Questions & Answers 3

Product Questions & Answers

both ends on this fitting are male BSPP, so what exactly does the "adjustable" part mean for the second side?

Question by: Janice J on Feb 9, 2026, 9:37 AM

The adjustable designation on side two means that end can be rotated and locked into position during installation, letting you fine-tune the orientation of the elbow before you tighten it down. Both sides carry the same G 1/4-19 male BSPP thread, but that adjustability on side two gives you a bit more freedom when you're working in a tight spot and need the outlet pointing just right without having to torque the whole assembly.

Answer by: Customer Support on Feb 10, 2026, 5:02 PM

trying to replace a 45 degree elbow on my hydraulic line, is this one male BSPP on both ends and 1/4 size?

Question by: Peggy T on Jun 27, 2025, 10:50 AM

Both sides are G 1/4 - 19 male BSPP, and each end is sized 1/4 inch. It is a 45° elbow, so it matches that angle as well.

Answer by: Customer Support on Jun 29, 2025, 6:14 AM

Will this elbow work with standard BSPP fittings?

Question by: Rhonda E on Feb 1, 2026, 5:56 PM

Yes, this Adaptall elbow is designed with G 1/4 - 19 Male BSPP connections on both sides, ensuring compatibility with standard BSPP fittings of the same size.

Answer by: Customer Support on Feb 3, 2026, 8:35 AM
