Adaptall 45* Din X Male Metric Adj 5066L-06-10

Specifications

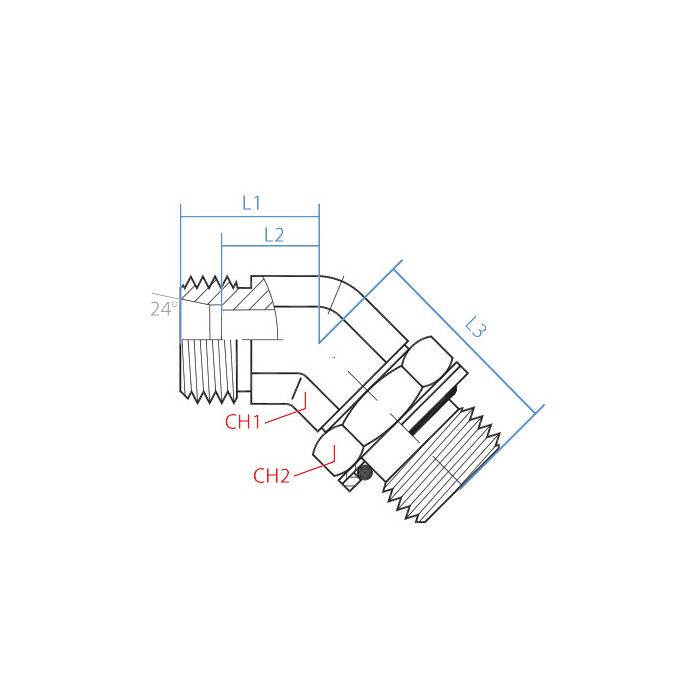

CH1 Width 12mm	CH2 Width 14mm	L1 Length 18mm	L2 Length 11mm	L3 Length 27mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M12 X 1.5	Side 1 Gender M	Side 1 Size L06	Side 1 Type Din Tube	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5066L-06-10	Product Weight 0.07 lbs

Product Questions & Answers 3

Product Questions & Answers

got a line running M10 x 1.0 metric on one end and need to tie into a DIN tube fitting, M12 x 1.5, this elbow gonna work for that?

Question by: Dwayne L on Nov 15, 2025, 6:59 PM

That's what this fitting does. One side is a male DIN tube connection, M12 x 1.5 thread at L06 size, and the other is a male metric at M10 x 1.0, 10mm. Both sides match what you described, so you'd be good to go.

Answer by: Customer Support on Nov 17, 2025, 7:26 AM

trying to swap a bent fitting on a metric line, is this the one with M12 x 1.5 on one end and M10 x 1.0 on the other?

Question by: Ray B on Feb 26, 2026, 5:15 PM

The ends are male M12 x 1.5 on the DIN tube side (size L06) and male M10 x 1.0 on the metric side (10 mm). It is a 45 degree elbow, so it routes the line on an angle instead of straight.

Answer by: Customer Support on Feb 28, 2026, 4:37 PM

So, this thing has a 45-degree bend, right? Just want to make sure before I order it up.

Question by: Wayne M on Oct 23, 2025, 3:29 PM

Correct, this is a 45-degree elbow fitting, useful when you need to make a turn in your hydraulic line.

Answer by: Customer Support on Oct 25, 2025, 12:49 PM
