45* Din X Male Bspp Adjustable

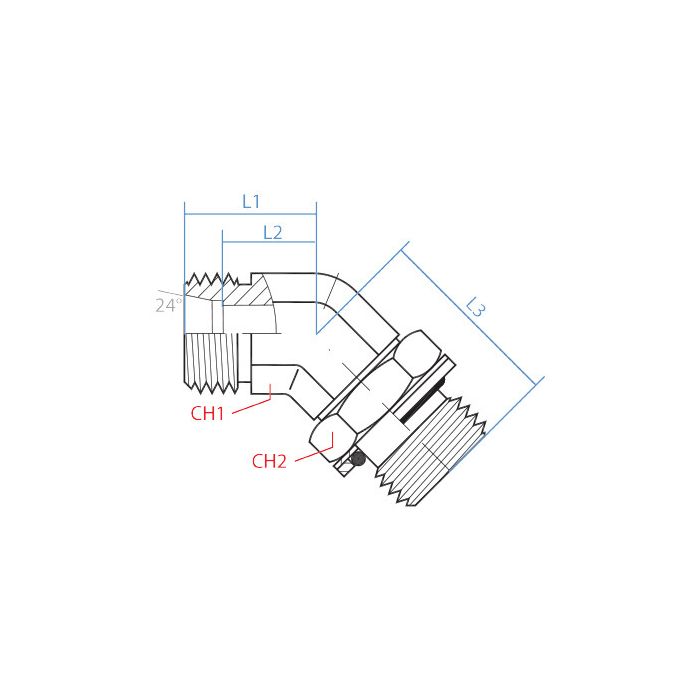

CH1 Width 14mm	CH2 Width 19mm	L1 Length 20mm	L2 Length 13mm	L3 Length 31.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout G 1/4 - 19	Side 2 Gender M	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5058L-08-04	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's got a 45 degree angle on it -- does that mean one side points straight and the other kicks out to the side, or is it more like both ends are angled off center?

Question by: Kurt H on May 22, 2025, 7:28 PM

On a 45 degree elbow like this one, one end connects straight into your component and the other end exits at a 45 degree offset from that axis. So if you're running a DIN tube line that needs to change direction without a sharp 90 degree turn, this gives you that gradual redirect. The DIN tube side uses an M14 x 1.5 thread with an L08 size, and the BSPP male side comes out at G 1/4-19. The elbow itself is steel, so it holds up to the stress of angled line routing without flexing or distorting at the joint.

Answer by: Customer Support on May 24, 2025, 7:48 AM
