Adaptall 45* Din X F Din Swivel 5362L-08

Specifications

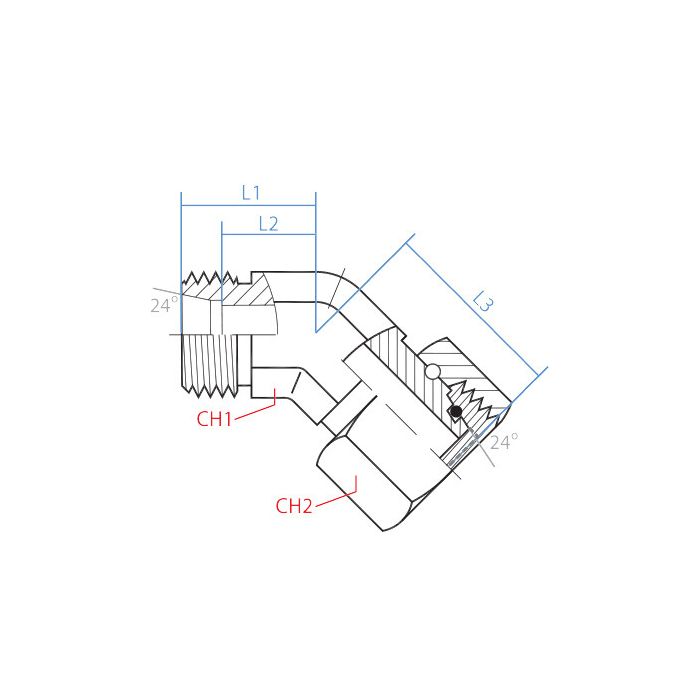

CH1 Width 14mm	CH2 Width 17mm	L1 Length 19mm	L2 Length 12mm	L3 Length 27.5mm	Adaptall Material Steel	Adaptall Shape 45° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size L08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5362L-08	Product Weight 0.11 lbs

Product Questions & Answers 3

Product Questions & Answers

What size wrench do I need for the flats on this swivel?

Question by: Hubert B on Jan 4, 2026, 4:05 PM

It's designed with a 14mm width on one channel and 17mm on the other to fit standard wrenches.

Answer by: Customer Support on Jan 6, 2026, 12:33 PM

Both sides on this thing are M14 x 1.5 threading, right? Just want to make sure before I go swapin out a straight fitting for this angled one.

Question by: Jimmy F on Jul 20, 2025, 12:54 PM

Both connections on this swivel are M14 x 1.5, yes. One side is a male DIN tube end and the other is female DIN tube, so as long as your existing fittings are DIN tube style at that thread size, this should drop right in where a straight fitting was. The 45 degree angle is the main difference you're working with here.

Answer by: Customer Support on Jul 22, 2025, 6:15 AM

got a tight spot on a hydraulic line, is this the kind of fitting that helps you turn the line without kinking it?

Question by: Steve W on Dec 29, 2025, 8:30 PM

With a 45° elbow shape and a swivel body, it’s meant to help you make an angled connection while still being able to rotate for alignment during hookup. Both ends are DIN tube connections, so it’s aimed at situations where you need that 45° change in direction but want easier clocking than a fixed elbow.

Answer by: Customer Support on Dec 31, 2025, 1:47 PM
