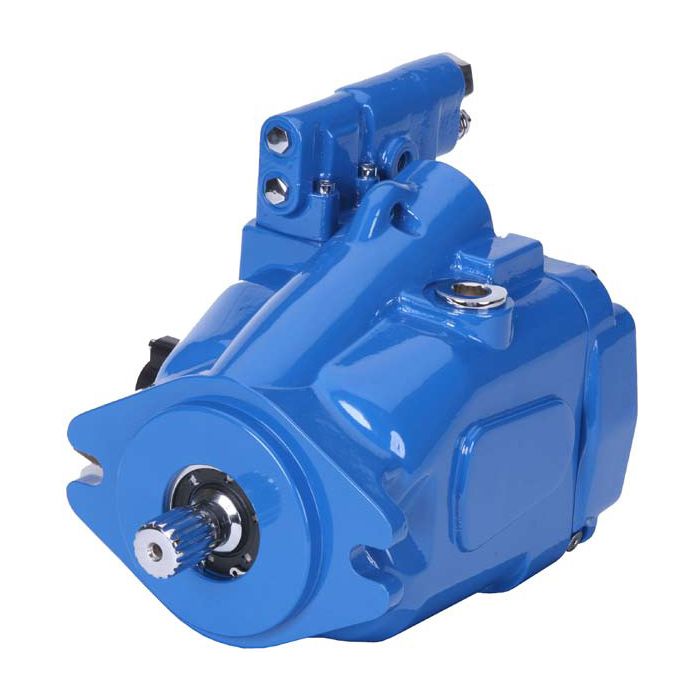

420 Mobile Piston Pumps, Up To 38 GPM @ 1800 RPM, Up To 4060 PSI, Up To 2650 RPM

CAUTION	Highly efficient pump controls • Strong, field-proven rotating group • Saddle-type swashplate with steel-backed polymer bearings and a pressure lubrication passage to reduce wear • Stiff swashplate reduces deflection, allows for evenly loaded bearings & extends unit life • Single control piston reduces forces acting on swashplate & reduces package size • Bimetal timing plate improves pump filling characteristics which reduces fluid-borne noise and extends pump life.
Fluid Viscosity	80 to 188 SSU Recommended Operating Range, 1192 SSU Maximum Continuous, 9720 SSU Maximum at Startup.
Recommended Filtration	ISO 4406 Cleanliness Level 21/18/13 or cleaner.
Speed Ratings	2.50 in³/rev & 3.00 in³/rev Models: 2650 rpm @ 0 psig, 2450 rpm @ 5 in.Hg, 2950 rpm @ 15 psig, 3600 rpm Max Standby. 3.80 in³/rev Models: 2600 rpm @ 0 psig, 2400 rpm @ 5 in.Hg, 2800 rpm @ 15 psig, 3600 rpm Max Standby. 4.88 in³/rev Models: 2200 rpm @ 0 psig, 1800 rpm @ 5 in.Hg, (N/A) rpm @ 15 psig, 3600 rpm Max Standby. Note: All models have a 600 RPM Minimum Speed.

Products

Part Number	Model Number	Displacement	Pressure Rating	Control	Shaft	Features
421AK01292B	ADU062R08AB10A25350000100100CD0B	3.8	4060	Pressure Compensated Load Sense	15T Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK00694B	ADU041R05AA10A28140000200100CD0B	2.5	4060	Pressure Compensated Load Sense	13T SAE B Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK01677B	ADU062R32AB10A35170000100500CD0B	3.8	4060	Pressure Compensated Load Sense	14T SAE C Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK01670B	ADU062R08AB10A32360000100100CD0B	3.8	4060	Pressure Compensated Load Sense	15T Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
