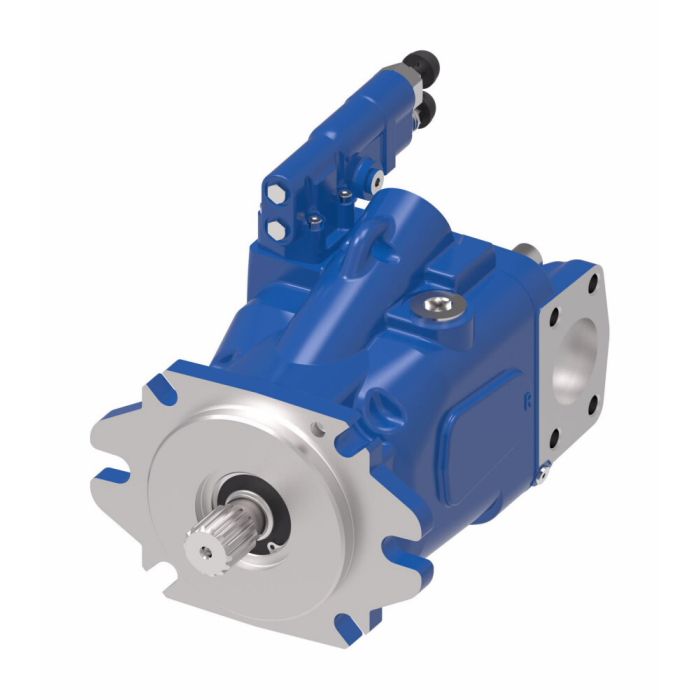

420 Mobile Piston Pump, 3.80 cu in/rev, 2/4-Bolt SAE C Mounting Flange, 14T SAE C Splined Shaft, Pressure Compensated Load Sense

Application Loader backhoes, Vibratory cable plows, Mining machinery, Dump truck lifts, Agriculture tractors, Chemical applicator trucks, Railroad equipment, Container handling, all terrain and truck cranes, Vibratory cable plows, Mining machinery and tunnel boring equipment, Utility boom, off road dump and refuse trucks, Material handling trucks and rough terrain fork lifts, Concrete and asphalt pavers, Feller/bunchers, forwarders and log loaders, Crawler dozers, Articulate haulers, Mini excavators	Color Blue Primer Per Spec 209-13Cd	Control Pressure Compensated Load Sense	Design Code Second	Displacement 3.80	Displacement 3.8	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity	Identification Mark Eaton Product Number and Full Model Code On Label	Maximum Operating Pressure 4060	Mount 2/4-Bolt SAE C	Mount 2/4-Bolt SAE C	Pressure Rating 4060	Rated Flow 29.60	Rated Flow 29.6	Series 420 Series Open Circuit Piston Pump	Shaft 14T SAE C Splined	Shaft 14T SAE C Splined	Supplier Part Number 421AK01677B	Alternate Part Numbers Alternate Part Number C1LX36	Product Weight 55.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Running a 3.80 displacement on a loader backhoe setup, what's the max pressure this pump can handle before things start going sideways?

Question by: Lynn H on Sep 19, 2025, 10:22 AM

Rated up to 4060 psi maximum operating pressure, so it's got solid headroom for loader backhoe work. The pressure compensated load sense control helps manage demand efficiently, meaning the pump isn't constantly running at peak pressure unless the system actually needs it. That combination keeps things running smoother and reduces unnecessary stress on the rotating group over time.

Answer by: Customer Support on Sep 20, 2025, 8:21 PM

Similar Products

Part Number	Model Number	Displacement	Pressure Rating	Control	Shaft	Features
421AK01292B	ADU062R08AB10A25350000100100CD0B	3.8	4060	Pressure Compensated Load Sense	15T Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK00694B	ADU041R05AA10A28140000200100CD0B	2.5	4060	Pressure Compensated Load Sense	13T SAE B Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK01677B	ADU062R32AB10A35170000100500CD0B	3.8	4060	Pressure Compensated Load Sense	14T SAE C Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK01670B	ADU062R08AB10A32360000100100CD0B	3.8	4060	Pressure Compensated Load Sense	15T Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
