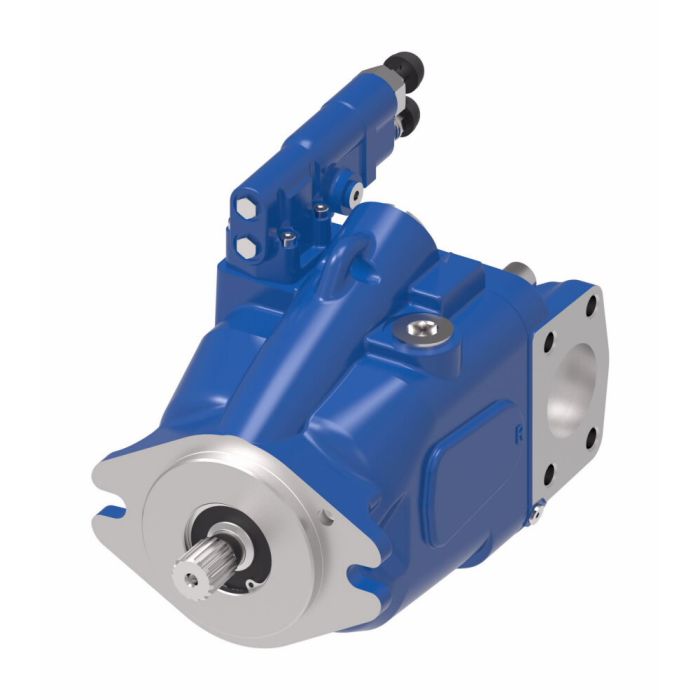

420 Mobile Piston Pump, 3.80 cu in/rev, 2-Bolt SAE BB Mounting Flange, 15T Splined Shaft, Pressure Compensated Load Sense

Application Loader backhoes, Vibratory cable plows, Mining machinery, Dump truck lifts, Agriculture tractors, Chemical applicator trucks, Railroad equipment, Container handling, all terrain and truck cranes, Vibratory cable plows, Mining machinery and tunnel boring equipment, Utility boom, off road dump and refuse trucks, Material handling trucks and rough terrain fork lifts, Concrete and asphalt pavers, Feller/bunchers, forwarders and log loaders, Crawler dozers, Articulate haulers, Mini excavators	Color Blue Primer Per Spec 209-13Cd	Control Pressure Compensated Load Sense	Design Code Second	Displacement 3.80	Displacement 3.8	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity	Identification Mark Eaton Product Number and Full Model Code On Label	Maximum Operating Pressure 4060	Mount 2-Bolt SAE BB	Mount 2-Bolt SAE BB	Pressure Rating 4060	Rated Flow 29.60	Rated Flow 29.6	Series 420 Series Open Circuit Piston Pump	Shaft 15T Splined	Shaft 15T Splined	Supplier Part Number 421AK01292B	Alternate Part Numbers Alternate Part Number C1KK35	Product Weight 55.10 lbs

Product Questions & Answers 4

Product Questions & Answers

What kind of machines does this pump work on? I got a backhoe that needs fixin'.

Question by: Lee Y on May 7, 2025, 6:00 AM

Designed for mobile equipment, this piston pump is used in machinery like loader backhoes, agriculture tractors, and mining equipment.

Answer by: Customer Support on May 9, 2025, 6:58 AM

pump's rated at 4060 psi max, that hold up running load sense controls on something like a crawler dozer or articulated hauler all day, or is that more of a peak figure?

Question by: Ricky J on Aug 21, 2025, 5:04 PM

At 4,060 psi, that's the maximum operating pressure, and the pressure compensated load sense control on this pump is built for exactly the kind of variable-demand work you'd see on crawlers and articulated haulers. The load sense setup means the pump only puts out what the system asks for, which keeps heat and wear in check during long shifts. Just make sure your fluid stays in that 80 to 188 SSU recommended viscosity range and your filtration is at ISO 4406 cleanliness level 21/18/13 or better, and you're set up for serious continuous use.

Answer by: Customer Support on Aug 22, 2025, 5:24 PM

What kind of machines can I use this pump on? I've got an old dump truck needs a new one.

Question by: Randy H on Dec 19, 2025, 9:19 AM

You'll find this 420 series pump used on dump truck lifts, as well as loader backhoes, mining machinery, farm tractors, and even railroad equipment. It's a pretty versatile piece of equipment.

Answer by: Customer Support on Dec 20, 2025, 7:31 PM

got a pump here with a 2-bolt SAE BB mount and a 15 tooth splined shaft, is that what this one comes with?

Question by: Lance T on May 3, 2025, 9:19 AM

It is set up with a 2-bolt SAE BB mounting flange and a 15T splined shaft.

Answer by: Customer Support on May 4, 2025, 2:42 PM

Similar Products

Part Number	Model Number	Displacement	Pressure Rating	Control	Shaft	Features
421AK01292B	ADU062R08AB10A25350000100100CD0B	3.8	4060	Pressure Compensated Load Sense	15T Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK00694B	ADU041R05AA10A28140000200100CD0B	2.5	4060	Pressure Compensated Load Sense	13T SAE B Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK01677B	ADU062R32AB10A35170000100500CD0B	3.8	4060	Pressure Compensated Load Sense	14T SAE C Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
421AK01670B	ADU062R08AB10A32360000100100CD0B	3.8	4060	Pressure Compensated Load Sense	15T Splined	Fastest response and recovery times in the market\|Increase efficiency with advanced control options\|High pressure and flow capacity
