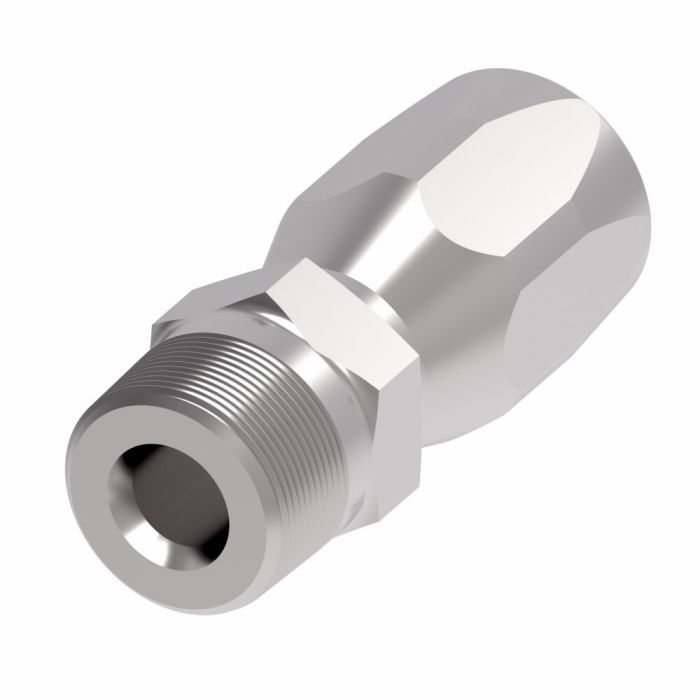

Aeroquip Reuse FIT 1/4MP 4Hose

Alternate Part Numbers Alternate Part Number C1BP40	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Size 1 0.25	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Fit for wide range of applications\|Durable and dependable\|Cut assembly times and boost production	Hex Size 2 0.62	Hose Dash Size -4	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Product Material Carbon Steel	Product Width 0.62	Sub Brand Aeroquip	Supplier Part Number 412-4-4S	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to match up a fitting i already got, is this one the male 1/4 pipe thread style for a -4 hose?

Question by: Ricky L on Nov 25, 2025, 1:19 PM

The key callouts are 1/4 inch male NPTF on one end and a -4 hose connection on the other. This part is an Aeroquip 412 series reusable hose fitting with those sizes.

Answer by: Customer Support on Nov 26, 2025, 7:43 PM

fitting says 1/4MP on one end and -4 hose on the other, does that mean it'll thread into a 1/4 inch NPT port and clamp onto a -4 hydraulic line?

Question by: Jimmy M on Aug 20, 2025, 11:13 AM

That's right. The male end is 1/4 inch NPTF thread, so it screws into a standard female pipe port, and the hose end is sized for -4 hose. The 0.62 inch hex on the hose side gives you a good wrench flat to work with during install. Carbon steel construction on both ends, so it holds up in typical hydraulic line work.

Answer by: Customer Support on Aug 22, 2025, 6:23 AM
