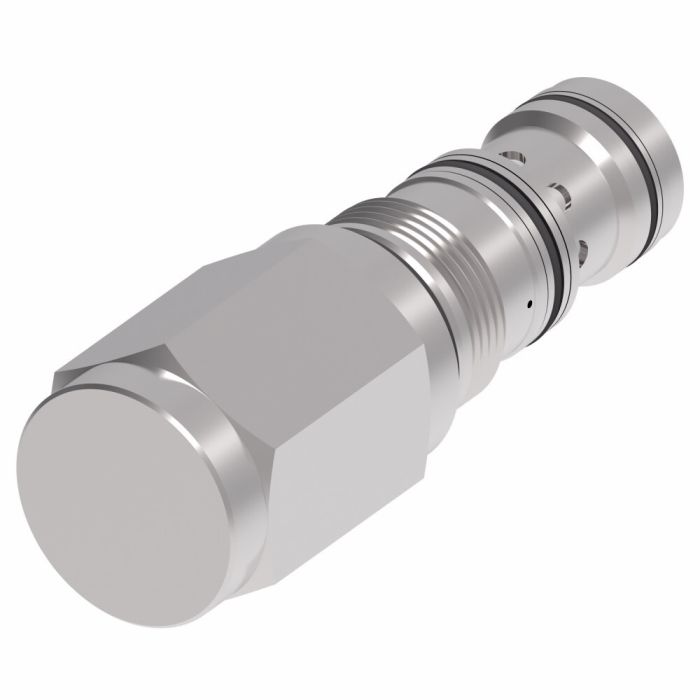

Danfoss / Eaton Integrated Hydraulics 1CE90N27S3 406AA00796A

Specifications

Application Harvesters, refuse haulers, mobile and industrial applications	Brand Danfoss Power Solutions II (Char-Lynn)	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features 350 bar (5000 psi) & 550 L/min (143 USgpm)\|Excellent stability for moving loads\|ISO8643 Compliant	Flow Rate1 90 litre per minute	ICC SICV Motion Control Valves	Language English	Net Pack Quantity Units EA	Port Size None	Product Width 1.26	Special Features None	Style Pilot assisted relief with check	Sub Brand Vickers	Supplier Part Number 406AA00796A	Product Weight 0.63 lbs

Product Questions & Answers 2

Product Questions & Answers

valve's rated up to 90 L/min but I see 550 L/min mentioned too -- which number actually applies to my setup?

Question by: Vince A on Aug 25, 2025, 9:25 AM

Those two numbers cover different things. The 90 litres per minute rating is specific to this valve, the 1CE90N27S3, and reflects its individual flow capacity. The 550 L/min figure is a series-wide maximum across the full 1CE90 lineup, not a rating for this particular unit. So when you're sizing this for your system, 90 L/min is the number to work with.

Answer by: Customer Support on Aug 27, 2025, 6:38 AM

So this thing handles up to 90 liters a minute, but what's the max pressure it can take? Just wanna make sure I'm not gonna blow it.

Question by: Shane H on Jun 1, 2025, 4:54 PM

This pilot-assisted relief valve with check is rated up to 350 bar, which is about 5,000 psi. Just keep your system pressure at or below that level, and you should be good to go.

Answer by: Customer Support on Jun 3, 2025, 11:02 AM
