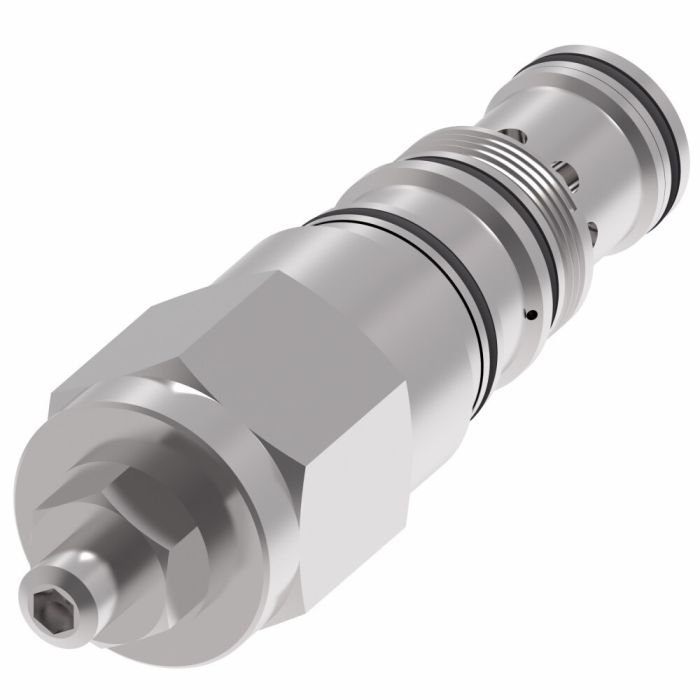

Danfoss / Eaton Integrated Hydraulics 1SEL140F20S1

Application
Harvesters, refuse haulers, mobile and industrial applications
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 550 L/min (143 USgpm)|Excellent stability for moving loads|ISO8643 Compliant
Flow Rate1
140 litre per minute
ICC
SICV Motion Control Valves
Language
English
Net Pack Quantity Units
EA
Port Size
None
Product Width
1.26
Special Features
None
Style
Pilot assisted relief with check
Sub Brand
Vickers
Supplier Part Number
406AA00328A
Product Weight
2.50 lbs

Product Questions & Answers

Got a harvester that's been giving us grief with load drift on the header lift circuit. Would this valve help with that kind of problem, or is it more suited for something else?
Question by: Ray K on Dec 7, 2025, 7:23 AM
Load drift on a lift circuit is exactly the kind of thing this valve is built to address. The pilot-assisted relief with check design gives you active resistance against unintended movement under load, which keeps things stable when the operator isn't actively commanding motion. It's rated for flows up to 140 liters per minute in this configuration, and it carries ISO8643 compliance, which is the relevant standard for load-holding performance in mobile equipment. Harvesters are actually one of the listed application types for this valve, so you're in the right place.
Answer by: Customer Support on Dec 9, 2025, 6:18 AM
