Hydraulic Power Systems & Components
Hydraulic Motors & Accessories
Geroler Motors
4000 Series Geroler Motors, Up To 10450 lb-in Intermittent Torque, 868 Intermittent RPM

Skip to the end of the images gallery

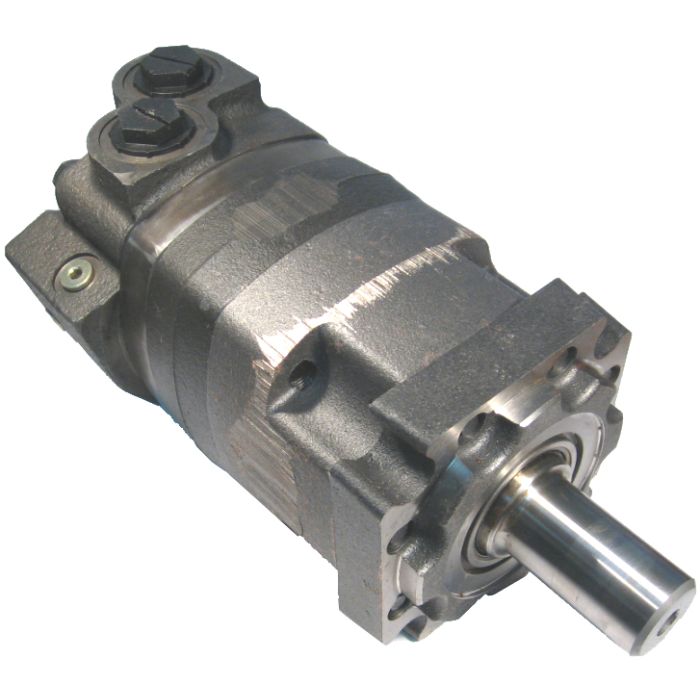

main product photo

Skip to the beginning of the images gallery

4000 Series Geroler Motors, Up To 10450 lb-in Intermittent Torque, 868 Intermittent RPM

Fluid Viscosity	Minimum: 70 SUS at operating temperature. Recommended Range: 100-200 SUS.
Maximum Case Pressure	1500 PSI (Without case drain). For continuous back pressure over 1500 PSI, use an external case drain line. Install line so motor case remains full at all times.
Maximum Operating Temperature	180° F.
Recommended Break-In	To assure best motor life, run motor for approximately one hour at 30% of rated pressure before application to full load. Be sure motor is filled with fluid prior to any load applications.
Recommended Filtration	Per ISO Cleanliness Code, level 18/13.
Recommended Fluids	Premium quality, anti-wear type hydraulic fluid.

Products

Model Number	Displacement	Mount	Shaft	Ports	Features	Price	Buy Now
109-1101	7.9	4 Bolt SAE B	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
109-1102	9.9	4 Bolt SAE B	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
109-1103	12.5	4 Bolt SAE B	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
109-1105	19	4 Bolt SAE B	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
109-1106	24	4 Bolt SAE B	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
109-1110	12.5	4 Bolt SAE B	1-5/8 in. Tapered	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
109-1212	30	4 Bolt SAE B	1-1/4 in. Straight Keyed	1-1/16-12 St.Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
169-0201	29.8	2 Bolt SAE A	14T 12/24 DP Spline	7/8-14 St. Thd. O-Ring	Standard, wheel or bearingless configurations\|Lowest pressure drop motor in the industry\|Highly-efficient Geroler motor provides energy savings
