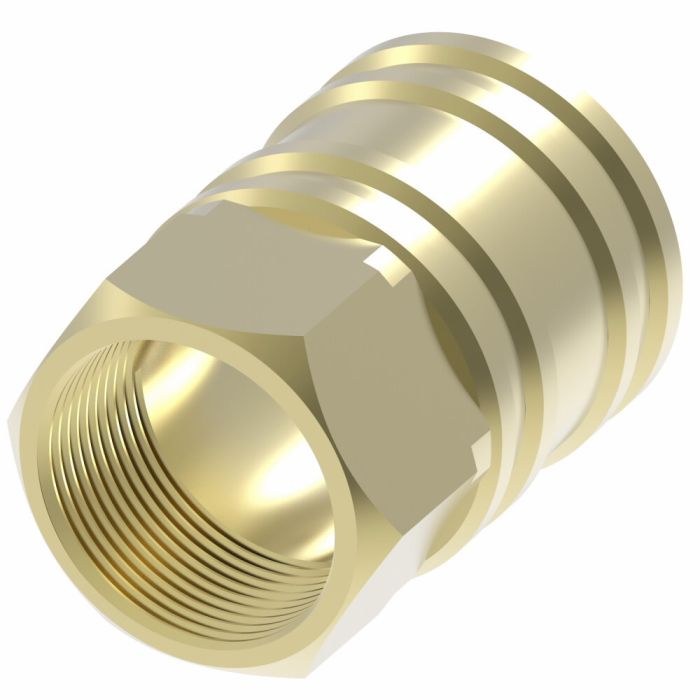

Danfoss / Eaton Hansen and Gromelle 3S21 Socket Brass 3/8-18 IN NPTF Female 3/8 IN Body Size 3S21

Specifications

Application Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Gender 2 13555	End Size 2 0.38	End Type 1 Push to Connect	End Type 2 NPTF	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 15 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Female Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	Port Size 3/8	Product Material Brass	Product Width 1.16	Safety locking Mechanism None	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number 3S21	Valve Type Straight Thru	Product Weight 0.26 lbs

Product Questions & Answers 2

Product Questions & Answers

does this socket work with a standard 3/8 NPTF port or do I need some kind of adapter to hook it up?

Question by: Kirk P on Jun 9, 2025, 10:00 AM

Straight connection, no adapter needed. The 3S21 has a 3/8-18 NPTF female thread on the port end, so it threads directly onto any standard 3/8-18 NPTF male fitting. The body is brass and the internal lock is ball-style, so once it's threaded in and torqued down you're good to go.

Answer by: Customer Support on Jun 11, 2025, 7:32 AM

i’m trying to swap out an old Hansen socket, is this 3S21 the female half with 3/8-18 NPTF threads?

Question by: Lynn M on Aug 2, 2025, 8:37 AM

The 3S21 is the female half (socket) and it has a 3/8-18 NPTF female pipe thread connection, with a 3/8 inch body size.

Answer by: Customer Support on Aug 3, 2025, 11:06 AM
