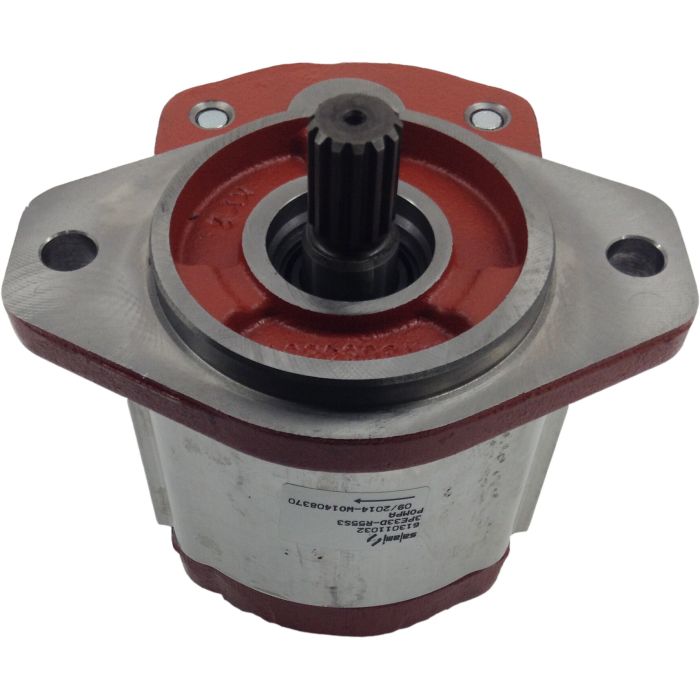

3PE Series Aluminum Gear Pump, 2.86 cu in/rev, 2-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE-20 Side Inlet, SAE-16 Side Outlet, CW Rotation

Displacement 2.86	Displacement 2.86	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE B	Mount 2-Bolt SAE B	Ports SAE-20 Side Inlet, SAE-16 Side Outlet	Ports SAE-20 Side Inlet, SAE-16 Side Outlet	Pressure Rating 3625	Rated Flow 22	Rated Flow 22	Rotation CW	Shaft 13T Splined x 1.61 long SAE B	Shaft 13T Splined x 1.61 long SAE B	Speed Rating 2475 RPM	Speed Rating 2475 RPM	Supplier Part Number 613079672	Alternate Part Numbers Alternate Part Number 3PE46D-R55S3, Alternate Part Number C1MW12	Product Weight 23.33 lbs

Product Questions & Answers 1

Product Questions & Answers

rotation on this one is clockwise out of the box, but can it be flipped to run CCW if I need it to?

Question by: Harvey P on Nov 19, 2025, 12:18 PM

Clockwise is the standard setup, but switching to counterclockwise is doable. You reverse the positions of the drive shaft and driven shaft and rotate the front flange. No special parts needed, just a reassembly. Worth double-checking your port orientation after you make the change since the inlet and outlet positions will shift relative to your hydraulic connections.

Answer by: Customer Support on Nov 21, 2025, 11:16 AM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
613012852	2.86	22	2-Bolt SAE B	1 St. Keyed x 1.81 long SAE BB	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625
613011112	1.26	9.8	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-16 Side Inlet, SAE-12 Side Outlet	CW	2700 RPM	3625
613079672	2.86	22	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625
