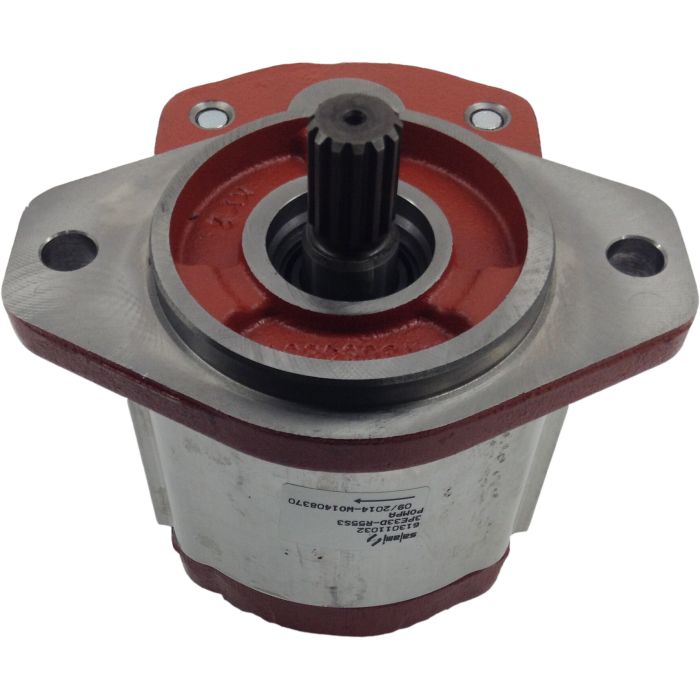

3PE Series Aluminum Gear Pump, 2.86 cu in/rev, 2-Bolt SAE B Mounting Flange, 1 St. Keyed x 1.81 long SAE BB Shaft, SAE-20 Side Inlet, SAE-16 Side Outlet, CW Rotation

Ask A Question
Displacement
2.86
Displacement
2.86
Brand
Salami Hydraulics Na Inc
Brand
Salami S.P.A
Pack Size
1.00
UOM
EA
Mount
2-Bolt SAE B
Mount
2-Bolt SAE B
Ports
SAE-20 Side Inlet, SAE-16 Side Outlet
Ports
SAE-20 Side Inlet, SAE-16 Side Outlet
Pressure Rating
3625
Rated Flow
22
Rated Flow
22
Rotation
CW
Shaft
1 St. Keyed x 1.81 long SAE BB
Shaft
1 St. Keyed x 1.81 long SAE BB
Speed Rating
2475 RPM
Speed Rating
2475 RPM
Supplier Part Number
613012852
Alternate Part Numbers
Alternate Part Number 3PE46D-R88S3, Alternate Part Number C1MV97
Product Weight
23.58 lbs
Product Questions & Answers 4

Product Questions & Answers

trying to match up a pump i’ve got, what mounting flange and shaft does this one come with?
Question by: Daryl S on Feb 22, 2026, 8:12 AM
It uses a 2-bolt SAE B mounting flange and an SAE BB shaft that is 1 inch straight keyed with a 1.81 inch length.
Answer by: Customer Support on Feb 23, 2026, 10:11 AM
I need a pump that can handle some pressure. What's the pressure rating on this Salami pump?
Question by: Cody P on Aug 7, 2025, 2:38 PM
This gear pump can handle continuous working pressures that vary based on displacement, but it can handle peak pressures up to 4300 PSI.
Answer by: Customer Support on Aug 9, 2025, 11:20 AM
got a pump that has to spin clockwise, is this one already set up that way?
Question by: Norm H on Jul 20, 2025, 11:14 AM
From the factory these pumps are stocked with clockwise rotation, and this model is listed as CW rotation.
Answer by: Customer Support on Jul 22, 2025, 9:11 AM
runs clockwise out of the box, right? trying to avoid tearing it back down after install if i got the rotation wrong
Question by: Tammy F on Mar 1, 2026, 5:30 PM
Clockwise is correct as shipped. If you ever need to switch to counterclockwise, it's doable by reversing the drive and driven shaft positions and rotating the front flange. No new parts required, just a disassembly and reassembly. But straight out of the box, CW is what you get.
Answer by: Customer Support on Mar 2, 2026, 7:06 PM

Similar Products

Model Number Displacement Rated Flow Mount Shaft Ports Rotation Features Speed Rating Pressure Rating Price Buy Now
613012852 2.86 22 2-Bolt SAE B 1 St. Keyed x 1.81 long SAE BB SAE-20 Side Inlet, SAE-16 Side Outlet CW 2475 RPM 3625
613011112 1.26 9.8 2-Bolt SAE B 13T Splined x 1.61 long SAE B SAE-16 Side Inlet, SAE-12 Side Outlet CW 2700 RPM 3625
613079672 2.86 22 2-Bolt SAE B 13T Splined x 1.61 long SAE B SAE-20 Side Inlet, SAE-16 Side Outlet CW 2475 RPM 3625
