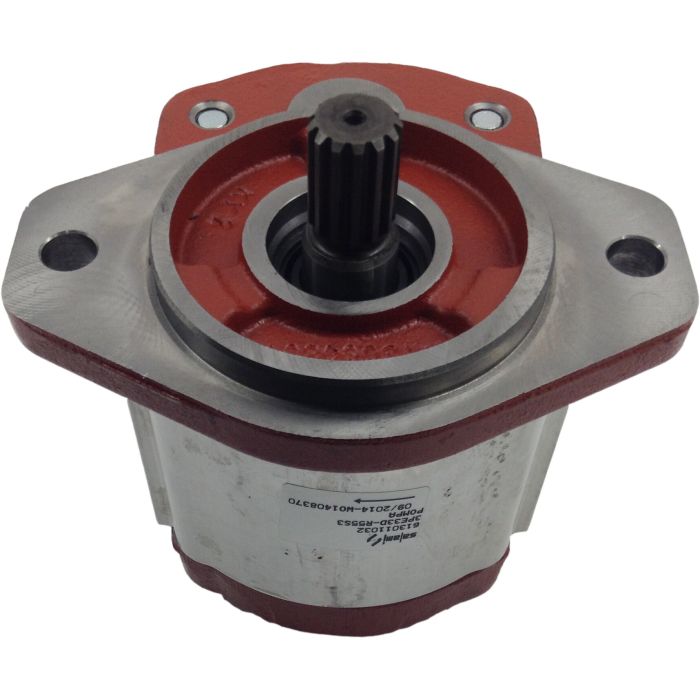

3PE Series Aluminum Gear Pump, 1.26 cu in/rev, 2-Bolt SAE B Mounting Flange, 13T Splined x 1.61 long SAE B Shaft, SAE-16 Side Inlet, SAE-12 Side Outlet, CW Rotation

Displacement 1.26	Displacement 1.26	Brand Salami S.P.A	Brand Salami S.P.A	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE B	Mount 2-Bolt SAE B	Ports SAE-16 Side Inlet, SAE-12 Side Outlet	Ports SAE-16 Side Inlet, SAE-12 Side Outlet	Pressure Rating 3625	Rated Flow 9.80	Rated Flow 9.8	Rotation CW	Shaft 13T Splined x 1.61 long SAE B	Shaft 13T Splined x 1.61 long SAE B	Speed Rating 2700 RPM	Speed Rating 2700 RPM	Supplier Part Number 613011112	Alternate Part Numbers Alternate Part Number C1MV73	Product Weight 5.00 lbs

Product Questions & Answers 1

Product Questions & Answers

rotation on this one is clockwise out of the box, but can it be swapped to run CCW if needed?

Question by: Vince K on Jan 3, 2026, 11:03 AM

Clockwise is the default, and yes, the rotation can be changed. You'd do it by reversing the position of the drive shaft and driven shaft, then rotating the front flange. It's a field-adjustable setup, so you're not locked into one direction when the pump ships.

Answer by: Customer Support on Jan 5, 2026, 8:31 AM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
613012852	2.86	22	2-Bolt SAE B	1 St. Keyed x 1.81 long SAE BB	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625
613011112	1.26	9.8	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-16 Side Inlet, SAE-12 Side Outlet	CW	2700 RPM	3625
613079672	2.86	22	2-Bolt SAE B	13T Splined x 1.61 long SAE B	SAE-20 Side Inlet, SAE-16 Side Outlet	CW	2475 RPM	3625
