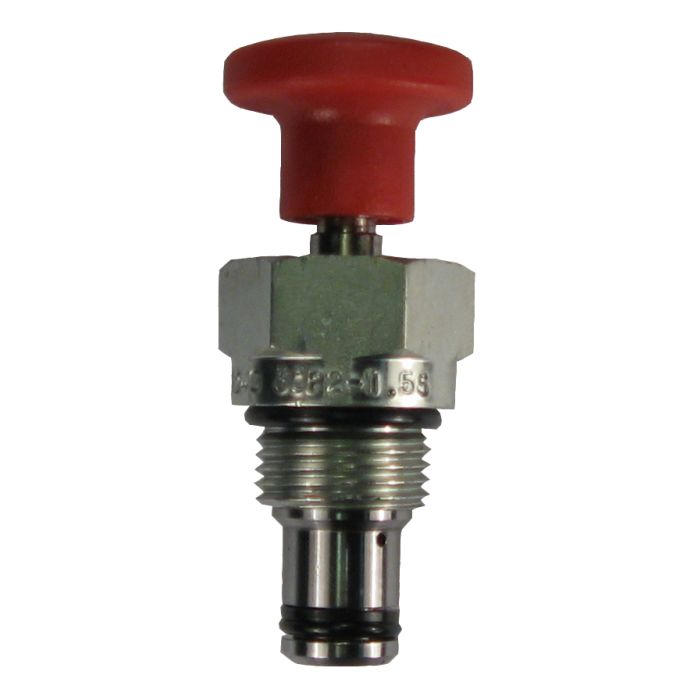

3CP2 Series 2-Way 2-Position Pull-To-Open Manual Valves, Up To 3000 PSI & 4 GPM
Application |
A typical application would be on an access platform to lower the boom in the event of a power failure. |
Cartridge |
Model 3CP2*, sold separately. |
Features |
These cartridges permit a small regulated flow to pass when the hand knob is depressed. |
Flow Rating |
0.9 mm orifice 1.4 US gpm, 1.5 mm orifice 4 US gpm. |
Housing |
Cavity size A879, sold separately, see |
Maximum Operating Pressure |
3000 PSI. |
Recommended Filtration |
Cleanliness level 18/13 or better |
Temperature Range |
-22° to 194°F |
Products
| Part Number | Model Number | Orifice Diameter | Rated Flow | Housing | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| 401AA00053A | 3CP2-1.5S | 1.5 | 4 | None | Nitrile |
|
