90* Din Union

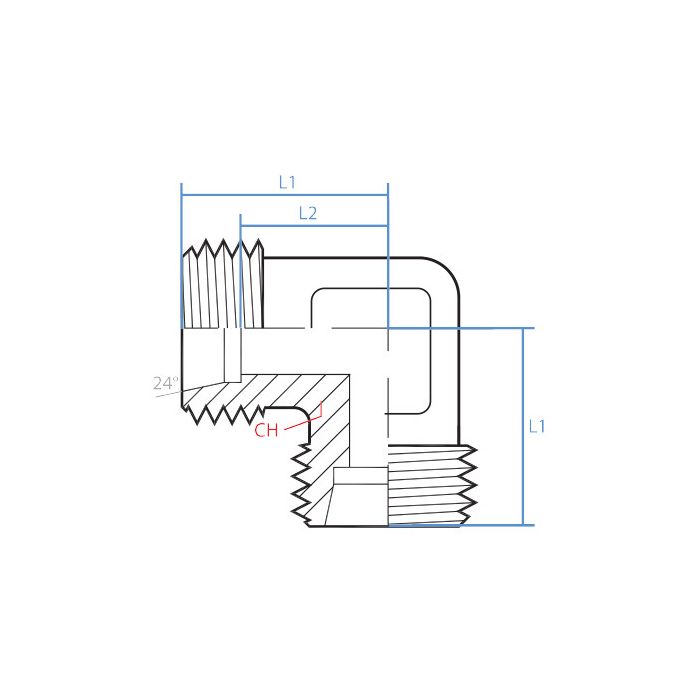

CH Width 14mm	L1 Length 24mm	L2 Length 17mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size S08	Side 1 Type Din Tube	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size S08	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5055S-08	Product Weight 0.11 lbs

Product Questions & Answers 2

Product Questions & Answers

Both sides got M16 x 1.5 DIN tube male threads on 'em, does that mean I need a union-style fitting on each end to hook this thing up proper?

Question by: Wade E on Aug 7, 2025, 2:10 PM

Yeah, both sides are male DIN tube threads, so you'll need a mating female DIN fitting at each connection point. That's standard for a union configuration like this. The M16 x 1.5 thread spec runs on both ends, so whatever you're joining to needs to match that on both sides. Pretty common setup when you're routing hydraulic lines at a 90-degree angle between two fixed points.

Answer by: Customer Support on Aug 9, 2025, 12:40 PM

What size threads does this fitting use?

Question by: Ricky Y on Sep 7, 2025, 6:37 AM

It uses M16 x 1.5 DIN tube male threads on both sides.

Answer by: Customer Support on Sep 9, 2025, 6:03 AM
