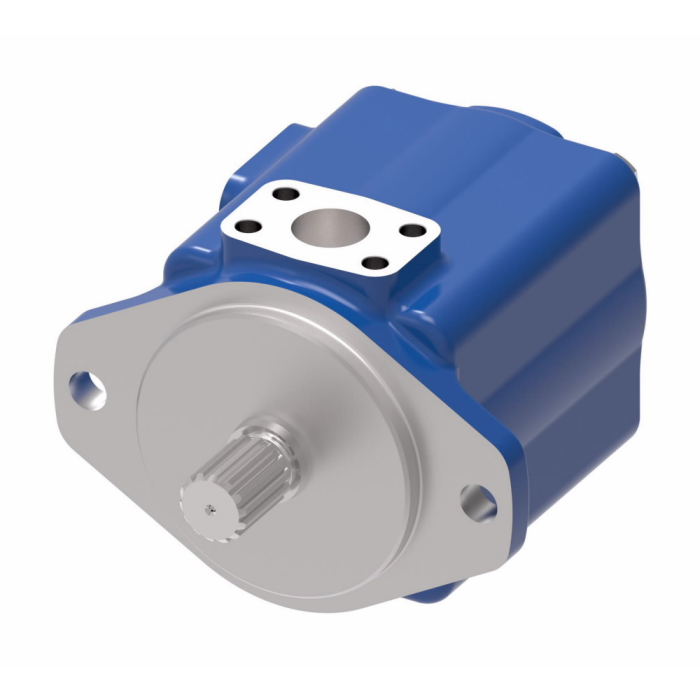

35VQ Series Vane Pump, 38 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CCW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
7.42
Displacement
7.42
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
Opposite Outlet
Rated Flow
57
Rated Flow
57
Ring Size
38
Ring Size
38
Rotation
CCW
Seal Material
Buna-N
Series
35VQ
Shaft
14 Tooth SAE C Splined
Shaft
14 Tooth SAE C Splined
Special Features
None
Speed Rating
2400 RPM
Speed Rating
2400 RPM
Supplier Part Number
427765-5
Product Weight
50.00 lbs
Product Questions & Answers 2

Product Questions & Answers

got a 35VQ38A-11A20-L pump i’m trying to swap out. is this the same one, or am i gonna be fighting the shaft and mount?
Question by: Gene O on Oct 18, 2025, 9:26 AM
Match it up by the key fit points: it’s a 35VQ series single vane pump with a 38 ring size, a 14 tooth SAE C splined shaft, and a 2 bolt SAE C mounting flange. Porting is SAE 4 bolt flange style with a 2 inch inlet and a 1-1/4 inch outlet, and the outlet is in the opposite outlet position.
Answer by: Customer Support on Oct 20, 2025, 6:10 AM
Will this run on my dump truck?
Question by: Howard T on Jul 5, 2025, 6:11 AM
This Eaton Vickers VQ series vane pump is listed as suitable for dump truck applications, along with oil and gas, metal cutting, wheel loaders, and plastic injection molding.
Answer by: Customer Support on Jul 6, 2025, 6:04 PM

Similar Products

Part Number Model Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Buy Now
419330-2 35VQ35A-11B20 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CW from Outlet CW 3000 2400 RPM
419330-3 35VQ35A-11C20 14 Tooth SAE C Splined 6.88 35 53.6 in-Line with Outlet CW 3000 2400 RPM
419330-4 35VQ35A-11D20 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CCW from Outlet CW 3000 2400 RPM
419330-5 35VQ35A-11A20-L 14 Tooth SAE C Splined 6.88 35 53.6 Opposite Outlet CCW 3000 2400 RPM
419330-6 35VQ35A-11B20-L 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CW from Outlet CCW 3000 2400 RPM
419330-7 35VQ35A-11C20-L 14 Tooth SAE C Splined 6.88 35 53.6 in-Line with Outlet CCW 3000 2400 RPM
419330-8 35VQ35A-11D20-L 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CCW from Outlet CCW 3000 2400 RPM
420995-2 35VQ21A-11B20 14 Tooth SAE C Splined 4.04 21 31.5 90 deg CW from Outlet CW 3000 2500 RPM
420995-3 35VQ21A-11C20 14 Tooth SAE C Splined 4.04 21 31.5 in-Line with Outlet CW 3000 2500 RPM
420995-4 35VQ21A-11D20 14 Tooth SAE C Splined 4.04 21 31.5 90 deg CCW from Outlet CW 3000 2500 RPM
420995-5 35VQ21A-11A20-L 14 Tooth SAE C Splined 4.04 21 31.5 Opposite Outlet CCW 3000 2500 RPM
420995-7 35VQ21A-11C20-L 14 Tooth SAE C Splined 4.04 21 31.5 in-Line with Outlet CCW 3000 2500 RPM
421526-2 35VQ30A-11B20 14 Tooth SAE C Splined 5.96 30 46 90 deg CW from Outlet CW 3000 2500 RPM
421526-3 35VQ30A-11C20 14 Tooth SAE C Splined 5.96 30 46 in-Line with Outlet CW 3000 2500 RPM
421526-4 35VQ30A-11D20 14 Tooth SAE C Splined 5.96 30 46 90 deg CCW from Outlet CW 3000 2500 RPM
421526-5 35VQ30A-11A20-L 14 Tooth SAE C Splined 5.96 30 46 Opposite Outlet CCW 3000 2500 RPM
421526-6 35VQ30A-11B20-L 14 Tooth SAE C Splined 5.96 30 46 90 deg CW from Outlet CCW 3000 2500 RPM
421526-7 35VQ30A-11C20-L 14 Tooth SAE C Splined 5.96 30 46 in-Line with Outlet CCW 3000 2500 RPM
421526-8 35VQ30A-11D20-L 14 Tooth SAE C Splined 5.96 30 46 90 deg CCW from Outlet CCW 3000 2500 RPM
421527-2 35VQ25A-1B20 1-1/4 straight Keyed 4.98 25 38.5 90 deg CW from Outlet CW 3000 2500 RPM
421527-3 35VQ25A-1C20 1-1/4 straight Keyed 4.98 25 38.5 in-Line with Outlet CW 3000 2500 RPM
421527-4 35VQ25A-1D20 1-1/4 straight Keyed 4.98 25 38.5 90 deg CCW from Outlet CW 3000 2500 RPM
421527-5 35VQ25A-1A20 1-1/4 straight Keyed 4.98 25 38.5 Opposite Outlet CW 3000 2500 RPM
421527-7 35VQ25A-1C20-L 1-1/4 straight Keyed 4.98 25 38.5 in-Line with Outlet CCW 3000 2500 RPM
421528-3 35VQ35A-1C20-L 1-1/4 straight Keyed 6.88 35 53.6 in-Line with Outlet CCW 3000 2400 RPM
421555-3 35VQ30A-1C20 1-1/4 straight Keyed 5.96 30 46 in-Line with Outlet CW 3000 2500 RPM
421555-4 35VQ30A-1D20 1-1/4 straight Keyed 5.96 30 46 90 deg CCW from Outlet CW 3000 2500 RPM
421555-5 35VQ30A-1A20-L 1-1/4 straight Keyed 5.96 30 46 Opposite Outlet CCW 3000 2500 RPM
421555-7 35VQ30A-1C20-L 1-1/4 straight Keyed 5.96 30 46 in-Line with Outlet CCW 3000 2500 RPM
421555-8 35VQ30A-1D20-L 1-1/4 straight Keyed 5.96 30 46 90 deg CCW from Outlet CCW 3000 2500 RPM
427765-2 35VQ38A-11B20 14 Tooth SAE C Splined 7.42 38 57 90 deg CW from Outlet CW 3000 2400 RPM
427765-3 35VQ38A-11C20 14 Tooth SAE C Splined 7.42 38 57 in-Line with Outlet CW 3000 2400 RPM
427765-4 35VQ38A-11D20 14 Tooth SAE C Splined 7.42 38 57 90 deg CCW from Outlet CW 3000 2400 RPM
427765-5 35VQ38A-11A20-L 14 Tooth SAE C Splined 7.42 38 57 Opposite Outlet CCW 3000 2400 RPM
427765-7 35VQ38A-11B20-L 14 Tooth SAE C Splined 7.42 38 57 90 deg CW from Outlet CCW 3000 2400 RPM
427807-2 35VQ25A-11B20 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CW from Outlet CW 3000 2500 RPM
427807-3 35VQ25A-11C20 14 Tooth SAE C Splined 4.98 25 38.5 in-Line with Outlet CW 3000 2500 RPM
427807-4 35VQ25A-11D20 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CCW from Outlet CW 3000 2500 RPM
427807-5 35VQ25A-11A20-L 14 Tooth SAE C Splined 4.98 25 38.5 Opposite Outlet CCW 3000 2500 RPM
427807-6 35VQ25A-11B20-L 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CW from Outlet CCW 3000 2500 RPM
427807-7 35VQ25A-11C20-L 14 Tooth SAE C Splined 4.98 25 38.5 in-Line with Outlet CCW 3000 2500 RPM
427807-8 35VQ25A-11D20-L 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CCW from Outlet CCW 3000 2500 RPM
591391-2 35VQ21A-1B20 1-1/4 straight Keyed 4.04 21 31.5 90 deg CW from Outlet CW 3000 2500 RPM
591391-3 35VQ21A-1C20 1-1/4 straight Keyed 4.04 21 31.5 in-Line with Outlet CW 3000 2500 RPM
591391-4 35VQ21A-1D20 1-1/4 straight Keyed 4.04 21 31.5 90 deg CCW from Outlet CW 3000 2500 RPM
591391-5 35VQ21A-1A20-L 1-1/4 straight Keyed 4.04 21 31.5 Opposite Outlet CCW 3000 2500 RPM
591391-7 35VQ21A-1C20-L 1-1/4 straight Keyed 4.04 21 31.5 in-Line with Outlet CCW 3000 2500 RPM
421528-2 35VQ35A-1B20 1-1/4 straight Keyed 6.88 35 53.6 90 deg CW from Outlet CW 3000 2400 RPM
421528-4 35VQ35A-1D20 1-1/4 straight Keyed 6.88 35 53.6 90 deg CCW from Outlet CW 3000 2400 RPM
421528-5 35VQ35A-1A20 1-1/4 straight Keyed 6.88 35 53.6 Opposite Outlet CW 3000 2400 RPM
421528-7 35VQ35A-1C20 1-1/4 straight Keyed 6.88 35 53.6 in-Line with Outlet CW 3000 2400 RPM
421529-2 35VQ38A-1B20 1-1/4 straight Keyed 7.42 38 57 90 deg CW from Outlet CW 3000 2400 RPM
421529-3 35VQ38A-1C20 1-1/4 straight Keyed 7.42 38 57 in-Line with Outlet CW 3000 2400 RPM
421529-4 35VQ38A-1D20 1-1/4 straight Keyed 7.42 38 57 90 deg CCW from Outlet CW 3000 2400 RPM
421529-5 35VQ38A-1A20-L 1-1/4 straight Keyed 7.42 38 57 Opposite Outlet CCW 3000 2400 RPM
421529-7 35VQ38A-1C20-L 1-1/4 straight Keyed 7.42 38 57 in-Line with Outlet CCW 3000 2400 RPM
421555-2 35VQ30A-1B20 1-1/4 straight Keyed 5.96 30 46 90 deg CW from Outlet CW 3000 2500 RPM
419330-1 35VQ35A-11A20 14 Tooth SAE C Splined 6.88 35 53.6 Opposite Outlet CW 3000 2400 RPM
420995-1 35VQ21A-11A20 14 Tooth SAE C Splined 4.04 21 31.5 Opposite Outlet CW 3000 2500 RPM
421526-1 35VQ30A-11A20 14 Tooth SAE C Splined 5.96 30 46 Opposite Outlet CW 3000 2500 RPM
421527-1 35VQ25A-1A20-L 1-1/4 straight Keyed 4.98 25 38.5 Opposite Outlet CCW 3000 2500 RPM
421528-1 35VQ35A-1A20-L 1-1/4 straight Keyed 6.88 35 53.6 Opposite Outlet CCW 3000 2400 RPM
421529-1 35VQ38A-1A20 1-1/4 straight Keyed 7.42 38 57 Opposite Outlet CW 3000 2400 RPM
421555-1 35VQ30A-1A20 1-1/4 straight Keyed 5.96 30 46 Opposite Outlet CW 3000 2500 RPM
427765-1 35VQ38A-11A20 14 Tooth SAE C Splined 7.42 38 57 Opposite Outlet CW 3000 2400 RPM
427807-1 35VQ25A-11A20 14 Tooth SAE C Splined 4.98 25 38.5 Opposite Outlet CW 3000 2500 RPM
591391-1 35VQ21A-1A20 1-1/4 straight Keyed 4.04 21 31.5 Opposite Outlet CW 3000 2500 RPM
