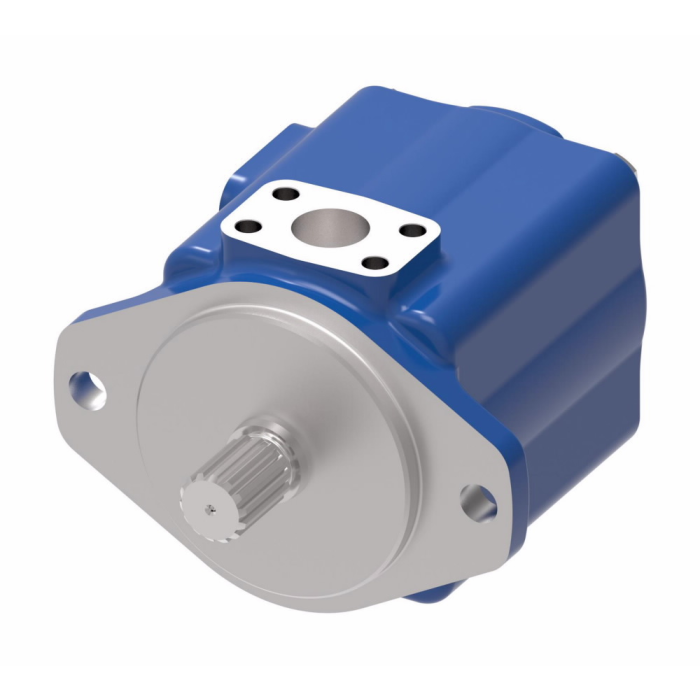

35VQ Series Vane Pump, 30 Ring Size, 14 Tooth SAE C Splined Shaft, Outlet Opposite Outlet, CW Rotation

Ask A Question
Application
Oil and Gas, Metal Cutting, Dump Truck, Wheel Loader, Plastic Injection Molding
Displacement
5.96
Displacement
5.96
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
3000
Maximum Pressure
3000
Port Location
Opposite Outlet
Rated Flow
46
Rated Flow
46
Ring Size
30
Ring Size
30
Rotation
CW
Seal Material
Buna-N
Series
35VQ
Shaft
14 Tooth SAE C Splined
Shaft
14 Tooth SAE C Splined
Special Features
None
Speed Rating
2500 RPM
Speed Rating
2500 RPM
Supplier Part Number
421526-1
Product Weight
50.00 lbs
Product Questions & Answers 2

Product Questions & Answers

Hey, I'm wondering if this'll bolt right up to a standard SAE C flange?
Question by: Darryl C on Dec 6, 2025, 3:36 PM
this pump uses a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports with a 2" inlet and 1-1/4" outlet, so it should integrate into most standard hydraulic systems without too much fuss.
Answer by: Customer Support on Dec 7, 2025, 9:08 PM
got a skid unit that needs a 2-bolt SAE C mount. will this pump bolt up and what size are the ports?
Question by: Tommy W on Feb 16, 2026, 9:42 PM
It uses a 2-bolt SAE C mounting flange and SAE 4-bolt flange ports. Port sizes are 2 inch inlet and 1-1/4 inch outlet, with the outlet located opposite the inlet.
Answer by: Customer Support on Feb 18, 2026, 8:04 AM

Similar Products

Part Number Model Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Buy Now
419330-2 35VQ35A-11B20 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CW from Outlet CW 3000 2400 RPM
419330-3 35VQ35A-11C20 14 Tooth SAE C Splined 6.88 35 53.6 in-Line with Outlet CW 3000 2400 RPM
419330-4 35VQ35A-11D20 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CCW from Outlet CW 3000 2400 RPM
419330-5 35VQ35A-11A20-L 14 Tooth SAE C Splined 6.88 35 53.6 Opposite Outlet CCW 3000 2400 RPM
419330-6 35VQ35A-11B20-L 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CW from Outlet CCW 3000 2400 RPM
419330-7 35VQ35A-11C20-L 14 Tooth SAE C Splined 6.88 35 53.6 in-Line with Outlet CCW 3000 2400 RPM
419330-8 35VQ35A-11D20-L 14 Tooth SAE C Splined 6.88 35 53.6 90 deg CCW from Outlet CCW 3000 2400 RPM
420995-2 35VQ21A-11B20 14 Tooth SAE C Splined 4.04 21 31.5 90 deg CW from Outlet CW 3000 2500 RPM
420995-3 35VQ21A-11C20 14 Tooth SAE C Splined 4.04 21 31.5 in-Line with Outlet CW 3000 2500 RPM
420995-4 35VQ21A-11D20 14 Tooth SAE C Splined 4.04 21 31.5 90 deg CCW from Outlet CW 3000 2500 RPM
420995-5 35VQ21A-11A20-L 14 Tooth SAE C Splined 4.04 21 31.5 Opposite Outlet CCW 3000 2500 RPM
420995-7 35VQ21A-11C20-L 14 Tooth SAE C Splined 4.04 21 31.5 in-Line with Outlet CCW 3000 2500 RPM
421526-2 35VQ30A-11B20 14 Tooth SAE C Splined 5.96 30 46 90 deg CW from Outlet CW 3000 2500 RPM
421526-3 35VQ30A-11C20 14 Tooth SAE C Splined 5.96 30 46 in-Line with Outlet CW 3000 2500 RPM
421526-4 35VQ30A-11D20 14 Tooth SAE C Splined 5.96 30 46 90 deg CCW from Outlet CW 3000 2500 RPM
421526-5 35VQ30A-11A20-L 14 Tooth SAE C Splined 5.96 30 46 Opposite Outlet CCW 3000 2500 RPM
421526-6 35VQ30A-11B20-L 14 Tooth SAE C Splined 5.96 30 46 90 deg CW from Outlet CCW 3000 2500 RPM
421526-7 35VQ30A-11C20-L 14 Tooth SAE C Splined 5.96 30 46 in-Line with Outlet CCW 3000 2500 RPM
421526-8 35VQ30A-11D20-L 14 Tooth SAE C Splined 5.96 30 46 90 deg CCW from Outlet CCW 3000 2500 RPM
421527-2 35VQ25A-1B20 1-1/4 straight Keyed 4.98 25 38.5 90 deg CW from Outlet CW 3000 2500 RPM
421527-3 35VQ25A-1C20 1-1/4 straight Keyed 4.98 25 38.5 in-Line with Outlet CW 3000 2500 RPM
421527-4 35VQ25A-1D20 1-1/4 straight Keyed 4.98 25 38.5 90 deg CCW from Outlet CW 3000 2500 RPM
421527-5 35VQ25A-1A20 1-1/4 straight Keyed 4.98 25 38.5 Opposite Outlet CW 3000 2500 RPM
421527-7 35VQ25A-1C20-L 1-1/4 straight Keyed 4.98 25 38.5 in-Line with Outlet CCW 3000 2500 RPM
421528-3 35VQ35A-1C20-L 1-1/4 straight Keyed 6.88 35 53.6 in-Line with Outlet CCW 3000 2400 RPM
421555-3 35VQ30A-1C20 1-1/4 straight Keyed 5.96 30 46 in-Line with Outlet CW 3000 2500 RPM
421555-4 35VQ30A-1D20 1-1/4 straight Keyed 5.96 30 46 90 deg CCW from Outlet CW 3000 2500 RPM
421555-5 35VQ30A-1A20-L 1-1/4 straight Keyed 5.96 30 46 Opposite Outlet CCW 3000 2500 RPM
421555-7 35VQ30A-1C20-L 1-1/4 straight Keyed 5.96 30 46 in-Line with Outlet CCW 3000 2500 RPM
421555-8 35VQ30A-1D20-L 1-1/4 straight Keyed 5.96 30 46 90 deg CCW from Outlet CCW 3000 2500 RPM
427765-2 35VQ38A-11B20 14 Tooth SAE C Splined 7.42 38 57 90 deg CW from Outlet CW 3000 2400 RPM
427765-3 35VQ38A-11C20 14 Tooth SAE C Splined 7.42 38 57 in-Line with Outlet CW 3000 2400 RPM
427765-4 35VQ38A-11D20 14 Tooth SAE C Splined 7.42 38 57 90 deg CCW from Outlet CW 3000 2400 RPM
427765-5 35VQ38A-11A20-L 14 Tooth SAE C Splined 7.42 38 57 Opposite Outlet CCW 3000 2400 RPM
427765-7 35VQ38A-11B20-L 14 Tooth SAE C Splined 7.42 38 57 90 deg CW from Outlet CCW 3000 2400 RPM
427807-2 35VQ25A-11B20 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CW from Outlet CW 3000 2500 RPM
427807-3 35VQ25A-11C20 14 Tooth SAE C Splined 4.98 25 38.5 in-Line with Outlet CW 3000 2500 RPM
427807-4 35VQ25A-11D20 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CCW from Outlet CW 3000 2500 RPM
427807-5 35VQ25A-11A20-L 14 Tooth SAE C Splined 4.98 25 38.5 Opposite Outlet CCW 3000 2500 RPM
427807-6 35VQ25A-11B20-L 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CW from Outlet CCW 3000 2500 RPM
427807-7 35VQ25A-11C20-L 14 Tooth SAE C Splined 4.98 25 38.5 in-Line with Outlet CCW 3000 2500 RPM
427807-8 35VQ25A-11D20-L 14 Tooth SAE C Splined 4.98 25 38.5 90 deg CCW from Outlet CCW 3000 2500 RPM
591391-2 35VQ21A-1B20 1-1/4 straight Keyed 4.04 21 31.5 90 deg CW from Outlet CW 3000 2500 RPM
591391-3 35VQ21A-1C20 1-1/4 straight Keyed 4.04 21 31.5 in-Line with Outlet CW 3000 2500 RPM
591391-4 35VQ21A-1D20 1-1/4 straight Keyed 4.04 21 31.5 90 deg CCW from Outlet CW 3000 2500 RPM
591391-5 35VQ21A-1A20-L 1-1/4 straight Keyed 4.04 21 31.5 Opposite Outlet CCW 3000 2500 RPM
591391-7 35VQ21A-1C20-L 1-1/4 straight Keyed 4.04 21 31.5 in-Line with Outlet CCW 3000 2500 RPM
421528-2 35VQ35A-1B20 1-1/4 straight Keyed 6.88 35 53.6 90 deg CW from Outlet CW 3000 2400 RPM
421528-4 35VQ35A-1D20 1-1/4 straight Keyed 6.88 35 53.6 90 deg CCW from Outlet CW 3000 2400 RPM
421528-5 35VQ35A-1A20 1-1/4 straight Keyed 6.88 35 53.6 Opposite Outlet CW 3000 2400 RPM
421528-7 35VQ35A-1C20 1-1/4 straight Keyed 6.88 35 53.6 in-Line with Outlet CW 3000 2400 RPM
421529-2 35VQ38A-1B20 1-1/4 straight Keyed 7.42 38 57 90 deg CW from Outlet CW 3000 2400 RPM
421529-3 35VQ38A-1C20 1-1/4 straight Keyed 7.42 38 57 in-Line with Outlet CW 3000 2400 RPM
421529-4 35VQ38A-1D20 1-1/4 straight Keyed 7.42 38 57 90 deg CCW from Outlet CW 3000 2400 RPM
421529-5 35VQ38A-1A20-L 1-1/4 straight Keyed 7.42 38 57 Opposite Outlet CCW 3000 2400 RPM
421529-7 35VQ38A-1C20-L 1-1/4 straight Keyed 7.42 38 57 in-Line with Outlet CCW 3000 2400 RPM
421555-2 35VQ30A-1B20 1-1/4 straight Keyed 5.96 30 46 90 deg CW from Outlet CW 3000 2500 RPM
419330-1 35VQ35A-11A20 14 Tooth SAE C Splined 6.88 35 53.6 Opposite Outlet CW 3000 2400 RPM
420995-1 35VQ21A-11A20 14 Tooth SAE C Splined 4.04 21 31.5 Opposite Outlet CW 3000 2500 RPM
421526-1 35VQ30A-11A20 14 Tooth SAE C Splined 5.96 30 46 Opposite Outlet CW 3000 2500 RPM
421527-1 35VQ25A-1A20-L 1-1/4 straight Keyed 4.98 25 38.5 Opposite Outlet CCW 3000 2500 RPM
421528-1 35VQ35A-1A20-L 1-1/4 straight Keyed 6.88 35 53.6 Opposite Outlet CCW 3000 2400 RPM
421529-1 35VQ38A-1A20 1-1/4 straight Keyed 7.42 38 57 Opposite Outlet CW 3000 2400 RPM
421555-1 35VQ30A-1A20 1-1/4 straight Keyed 5.96 30 46 Opposite Outlet CW 3000 2500 RPM
427765-1 35VQ38A-11A20 14 Tooth SAE C Splined 7.42 38 57 Opposite Outlet CW 3000 2400 RPM
427807-1 35VQ25A-11A20 14 Tooth SAE C Splined 4.98 25 38.5 Opposite Outlet CW 3000 2500 RPM
591391-1 35VQ21A-1A20 1-1/4 straight Keyed 4.04 21 31.5 Opposite Outlet CW 3000 2500 RPM
