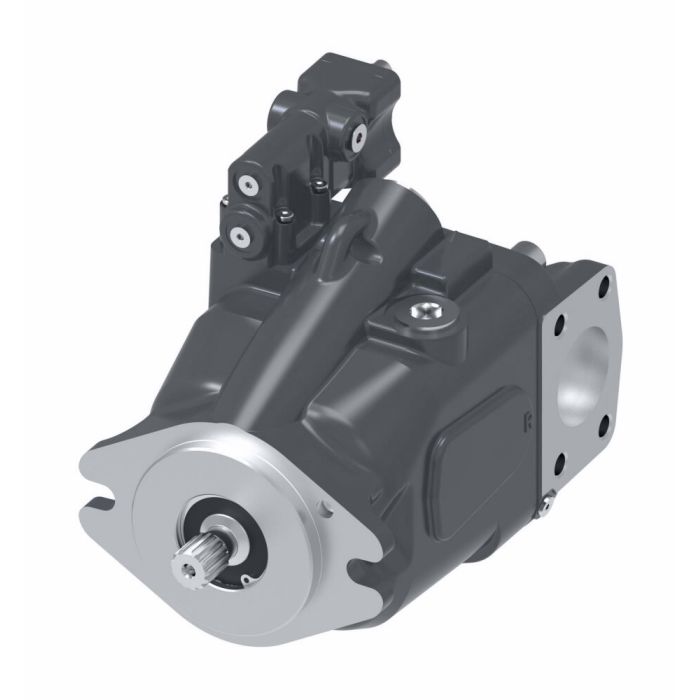

Danfoss / Eaton-2.48 DUAL SVO-B2B CONT.VAR.DIS.AX.

Application Construction, Agriculture, Truck and Bus, Oil and Gas, and other mobile applications	Brand Danfoss – Hydraulics	Brand Char-Lynn	Pack Size 1.00	UOM EA	Features Easy-to-operate sealed system\|Displacements: 20cc to 49cc (1.22 to 3.00 cu in)\|Flexible for multiple applications	ICC Mobile - CC Piston Pumps	Language English	Product Width 10.98	Special Features Adjustable Servo Stop, Both Sides	Sub Brand None	Supplier Part Number 358AK00018A	Type Variable Displacement	Product Weight 55.00 lbs

Product Questions & Answers 1

Product Questions & Answers

pump says it goes from 20cc up to 49cc, does that mean you can dial it in anywhere between those two points or is it more of a low/high switch situation?

Question by: Travis J on May 8, 2025, 3:24 PM

Variable displacement on this unit is continuous across that range, not just two fixed positions. The adjustable servo stop on both sides lets you set your limits, but between those stops the displacement adjusts fluidly. That's what the "cont. var. dis." in the product name is referring to. So yes, you get true variable control through that 20cc to 49cc window, which is part of what makes it useful across different load conditions on mobile equipment.

Answer by: Customer Support on May 9, 2025, 3:57 PM
