Bspp Copper Sealing Washers

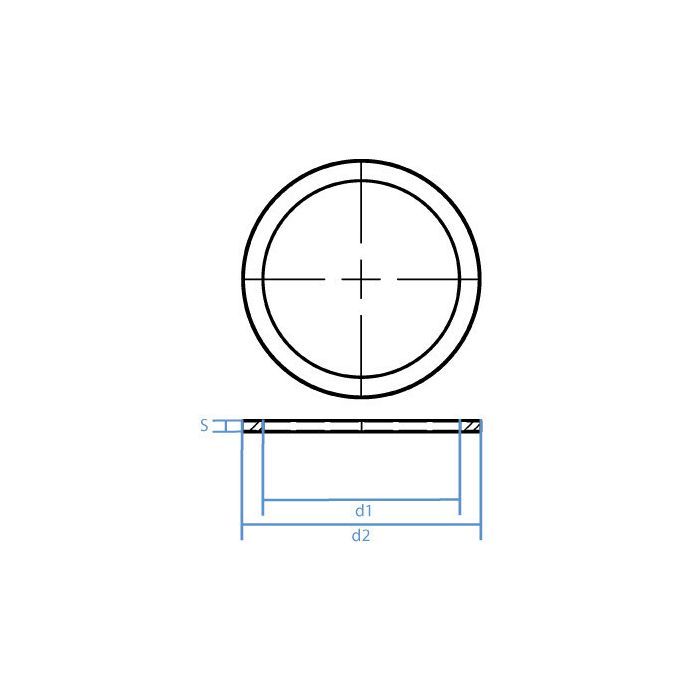

d Diameter 19mm	Adaptall Material Steel	S Misc 1.4mm	Adaptall Shape Component	Side 1 Callout G 1/4 - 19	Side 1 Gender -	Side 1 Size 1/4"	Side 1 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3500-04	Product Weight 0.01 lbs

Product Questions & Answers 2

Product Questions & Answers

these got a G 1/4 thread on em -- will they work with standard BSPP fittings or just the Adaptall stuff?

Question by: Earl F on Nov 4, 2025, 11:05 AM

G 1/4 - 19 is a BSPP thread spec, so the fit is based on that standard. These washers are made to pair with Adaptall fittings and components, but any BSPP connection using a G 1/4 port should accept them. The 19mm outer diameter and 1.4mm thickness are what matter for seating properly and getting a leak-free seal at the joint.

Answer by: Customer Support on Nov 5, 2025, 7:44 PM

What size is the hole in these washers? I need one that's about 1/4 inch.

Question by: Rick P on May 12, 2025, 3:24 PM

These BSPP copper sealing washers are made to fit a 1/4" Side 1 Size, so they should work for your application.

Answer by: Customer Support on May 13, 2025, 7:12 PM
