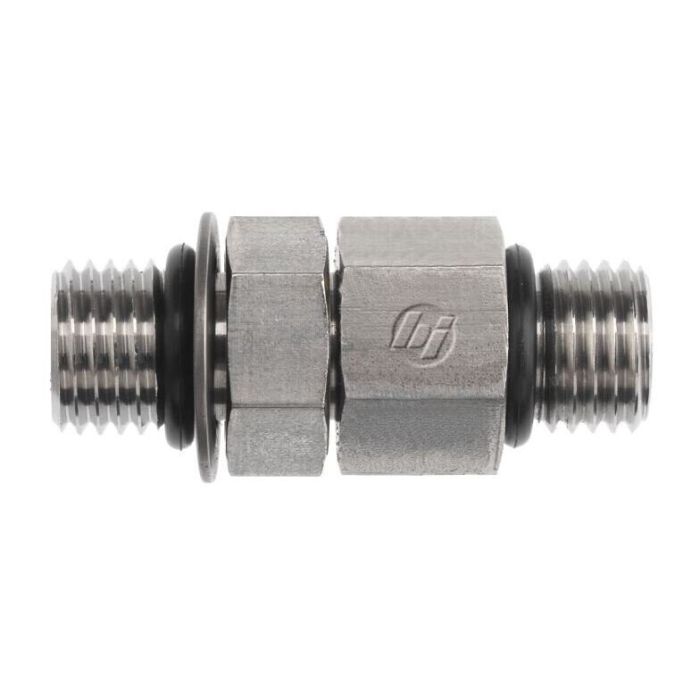

20MAORB-20MORB STRAIGHT 3474-20-20-NWO

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 3474-20-20-NWO	Product Weight 0.95 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this fitting work for connecting two 1-5/8-12 sized ports?

Question by: Kent F on Aug 3, 2025, 5:02 PM

Yes, it will. This straight adapter is designed to connect male SAE adjustable O-ring boss and male SAE O-ring boss configurations, both with a 1-5/8-12 thread size.

Answer by: Customer Support on Aug 5, 2025, 6:02 AM

Thread size on both ends is 1-5/8-12, so does that mean this thing connects two identical ORB ports together, or is there something different about each end?

Question by: Dwight W on Dec 31, 2025, 8:21 PM

Both ends share the same 1-5/8-12 thread size, but they are not identical. One end is a Male SAE Adjustable O-Ring Boss and the other is a Male SAE O-Ring Boss. The adjustable end lets you reposition the fitting angle during installation before locking it down, while the standard ORB end threads straight in without that adjustment. So yeah, same size, different function on each side.

Answer by: Customer Support on Jan 2, 2026, 2:45 PM

got a 1-5/8-12 male ORB port, is this the adapter that’ll match up or am i lookin at the wrong one

Question by: Bobby O on May 14, 2025, 7:50 AM

Both ends on this adapter are 1-5/8-12 threads built to SAE J514. One side is a male SAE adjustable O-ring boss, and the other side is a male SAE O-ring boss, so it’s meant for ORB-style connections in that same size.

Answer by: Customer Support on May 15, 2025, 9:28 AM
