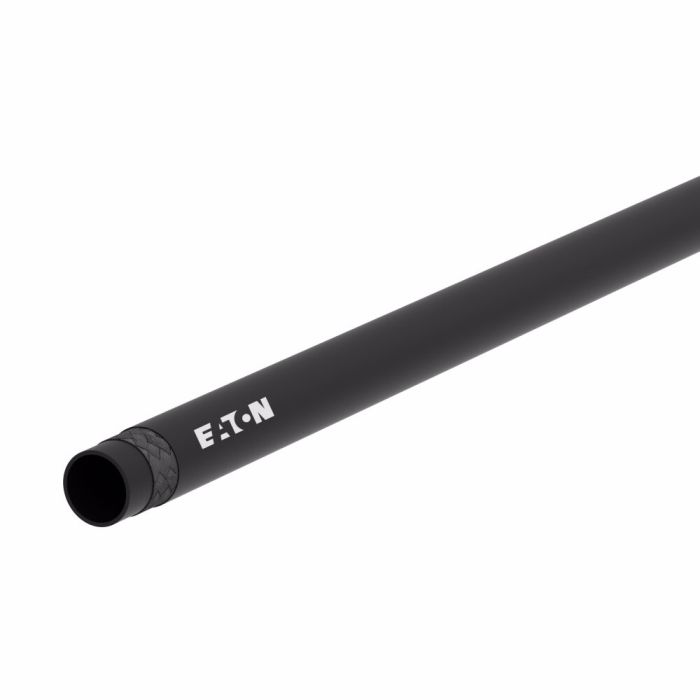

DANFOSS / EATON AIRBRAKE TUBING 3/4 OD GR

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MI-08754217, Alternate Part Number MINO-00803X87444	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies	Certifications SAE J844\|SAE J2494-2\|SAE J1131	Color Green	Compliances DOT FMVSS 106	Conductivity 13552	Cover Material Polyester	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	ICC Hoses and Flexible Tubes	Impulse Cycle Life 125000 cycle	Language English	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.75	Qualified Hose Fittings QCAB, Push to Connect	Reinforcement Material UV Stabilized	Supplier Part Number 3270-12153	Tube Material Polyamide	Product Weight 0.23 lbs

Product Questions & Answers

What kinda fittings work best with this air brake tubing? I'm used to somethin' quick and easy.

Question by: Hank H on Aug 15, 2025, 5:04 PM

This tubing is qualified for use with QCAB and push-to-connect fittings, so you can get those lines run without a whole lotta fuss.

Answer by: Customer Support on Aug 17, 2025, 6:15 AM
