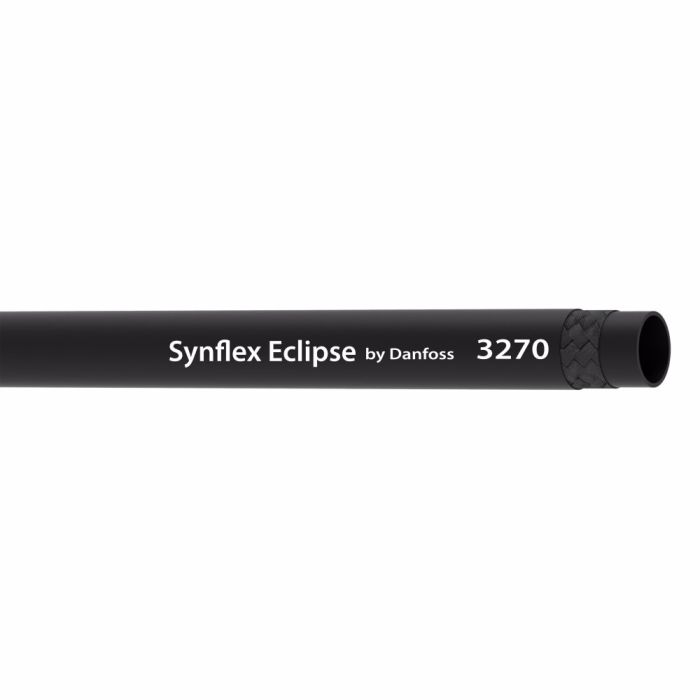

Aeroquip ECLIPSE 3/4 BLK -comes in 100 footers 3270-1210-0100

Specifications

Abrasion Resistance 28	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.	Certifications SAE J2494-2\|SAE J1131\|SAE J844	Color Black	Compliances DOT FMVSS 106	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Impulse Cycle Life 125000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3	Minimum Bend Radius 3	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.75	Reinforcement Material Synthetic fiber	Sub Brand Synflex	Supplier Part Number 3270-1210-0100	Tube Material Nylon	Product Weight 0.28 lbs

Product Questions & Answers 3

Product Questions & Answers

Can I use this for air brake lines on my semi-truck?

Question by: Cheryl S on Mar 5, 2026, 8:48 PM

Yes, this Aeroquip Synflex Eclipse hose is specifically designed for truck and trailer air brake systems, as well as auxiliary air systems. It meets DOT FMVSS 106 compliance standards.

Answer by: Customer Support on Mar 7, 2026, 8:19 PM

got a truck air brake setup that takes 3/4 line, is this the right stuff or am i off a size

Question by: Peggy M on Apr 27, 2025, 7:55 AM

For 3/4 inch air brake hydraulic connections, this hose matches that size and it is the -12 dash. It is intended for truck and trailer air brake systems, plus auxiliary air systems and air brake harness assemblies.

Answer by: Customer Support on Apr 29, 2025, 8:49 AM

does this hose hold up on air brake lines for heavy trailers, or is it more of a light duty thing?

Question by: Harvey W on Feb 9, 2026, 10:11 AM

Built for exactly that kind of work. The 3270 Series is rated for truck and trailer air brake systems, including auxiliary air systems, and it carries DOT FMVSS 106 compliance along with SAE J1131 and SAE J2494-2 certifications. The multi-braid synthetic fiber reinforcement and polyester cover are spec'd for harsh operating conditions, so it holds up well in real service environments, not just lab ratings. Rated to 125,000 impulse cycles, which puts it well above what most brake line applications will ever see.

Answer by: Customer Support on Feb 10, 2026, 1:43 PM
