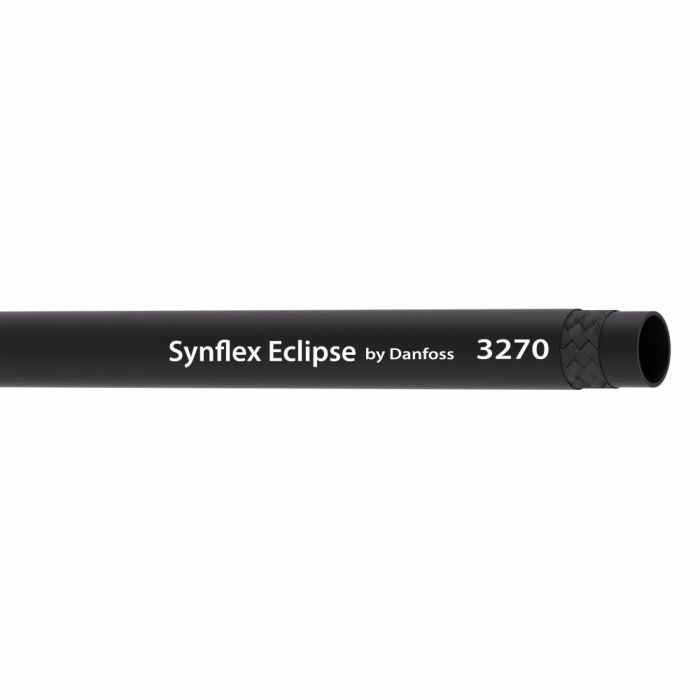

AeroquipIRBRAKE ORANGE 1/2 OD Eclipse 500 FT 3270-0813-0500

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1MZ21	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies.	Certifications SAE J844\|SAE J2494-2\|SAE J1131	Color Orange	Compliances DOT FMVSS 106	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -8	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Impulse Cycle Life 125000 cycle	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 2	Minimum Bend Radius 2	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.50	Reinforcement Material Synthetic fiber	Sub Brand Synflex	Supplier Part Number 3270-0813-0500	Tube Material Nylon	Product Weight 0.11 lbs

Product Questions & Answers 1

Product Questions & Answers

does this hose hold up in real cold weather, like well below freezing? got trucks running early mornings and need something that ain't gonna crack on me

Question by: Brett R on Jul 27, 2025, 2:50 PM

Rated down to negative 40 degrees minimum working temperature, so early morning cold starts and winter hauls are well within what this hose is built to handle. The nylon tube material and synthetic fiber reinforcement keep it flexible even when temperatures drop hard, which matters a lot for air brake lines that need to move and bend without stiffening up or cracking at fittings.

Answer by: Customer Support on Jul 29, 2025, 8:28 AM
