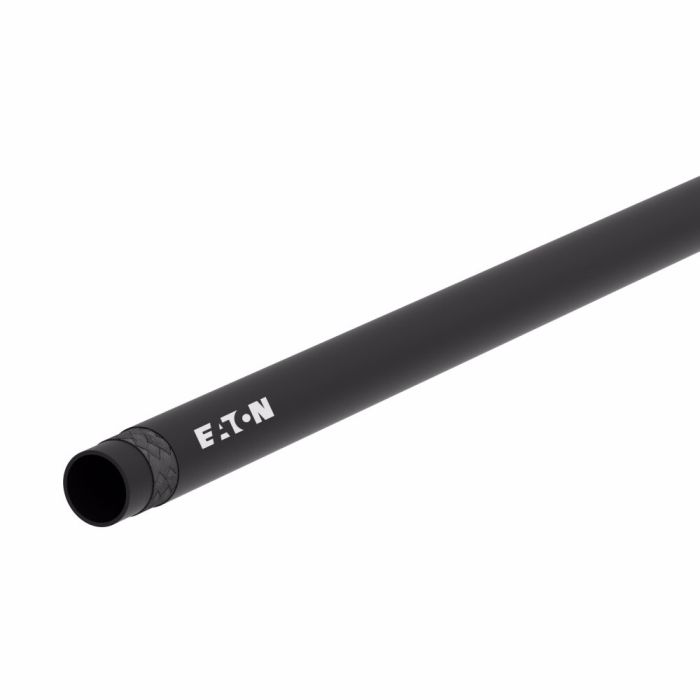

Danfoss / Eaton 3270 Eclipse Air Brake Tubing 3270-06154

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MI-08754219, Alternate Part Number MINO-00803X87663	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies	Certifications SAE J844\|SAE J2494-2\|SAE J1131	Color Green	Compliances DOT FMVSS 106	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Impulse Cycle Life 125000 cycle	Language English	Minimum Bend Radius 1.50	Minimum Bend Radius 1.5	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.38	Qualified Hose Fittings QCAB, Push to Connect	Reinforcement Material Synthetic fiber	Sub Brand Synflex	Supplier Part Number 3270-06154	Tube Material Polyamide	Product Weight 0.08 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to match up tubing for a truck air brake harness, is this 3270 Eclipse stuff the right kind?

Question by: Ronnie H on May 6, 2025, 8:40 PM

Built for truck and trailer air brake systems, the 3270 Eclipse tubing is also used in auxiliary air systems and in formed or straight air brake harness assemblies.

Answer by: Customer Support on May 8, 2025, 8:26 PM

What kind of rigs is this air brake tubing typically used on?

Question by: Hugh A on Jul 14, 2025, 3:07 PM

Common uses include truck and trailer air brake systems, along with auxiliary air systems. It's also suitable for formed tubes and air brake harness assemblies.

Answer by: Customer Support on Jul 16, 2025, 6:46 AM

tubing's rated for -40 on the cold end, but what's the story on the upper temp limit for continuous use in a trailer brake setup?

Question by: Dwayne M on Apr 3, 2025, 7:00 AM

Cold weather performance is clearly covered at -40 degrees, and the polyamide tube with polyester cover holds up well under the thermal stress typical of air brake cycling. For continuous use on trailer assemblies, the multi-braid synthetic fiber reinforcement handles the repeated pressure fluctuations without degrading quickly. The 125,000 impulse cycle rating gives you a solid picture of long-term durability under real working conditions, which is about as reliable a benchmark as you'll find for brake harness tubing in heavy haul applications.

Answer by: Customer Support on Apr 5, 2025, 6:45 AM
