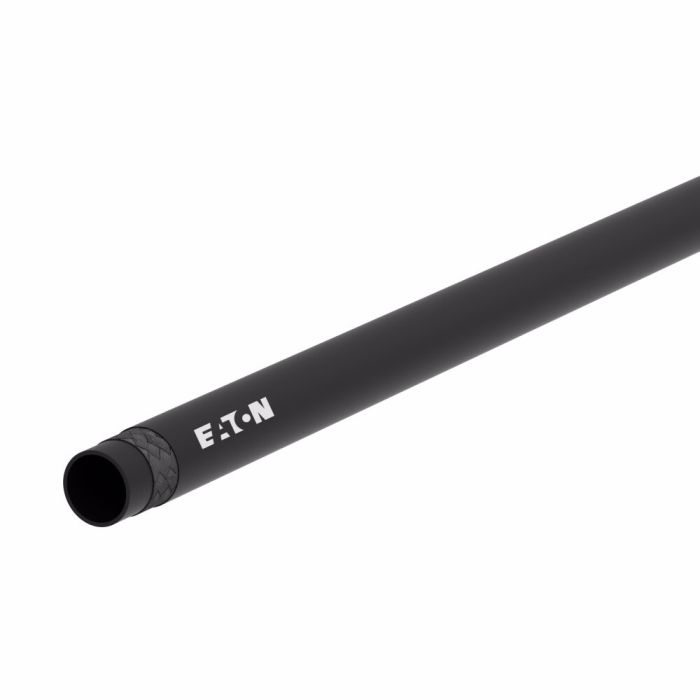

Danfoss / Eaton 3270 Eclipse Air Brake Tubing 3270-06124

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MI-08207222, Alternate Part Number MINO-00803X00503	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies	Certifications SAE J844\|SAE J1131\|SAE J2494-2	Color Red	Compliances DOT FMVSS 106	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Impulse Cycle Life 125000 cycle	Language English	Minimum Bend Radius 1.50	Minimum Bend Radius 1.5	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.38	Qualified Hose Fittings QCAB, Push to Connect	Reinforcement Material Synthetic fiber	Sub Brand Synflex	Supplier Part Number 3270-06124	Tube Material Polyamide	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

does this tubing hold up when it gets real cold out? asking cause we run equipment through some pretty rough winters and need something that aint gonna get stiff and crack on us

Question by: Gene W on Dec 9, 2025, 7:43 AM

Cold weather performance is built into this tubing. The minimum working temperature is rated at -40 degrees, so it stays flexible and functional even in severe winter conditions without cracking or hardening. The polyamide tube material and polyester cover handle that kind of cold without breaking down.

Answer by: Customer Support on Dec 10, 2025, 9:44 AM

got a -6 air brake line already, is this 3270 tubing the right size for that

Question by: Darryl W on Dec 17, 2025, 9:17 AM

For sizing, the dash size on this product is -6. It is part of the Synflex Eclipse 3270 Series air brake hose and tubing line used on truck and trailer air brake systems and auxiliary air systems.

Answer by: Customer Support on Dec 18, 2025, 10:53 AM
