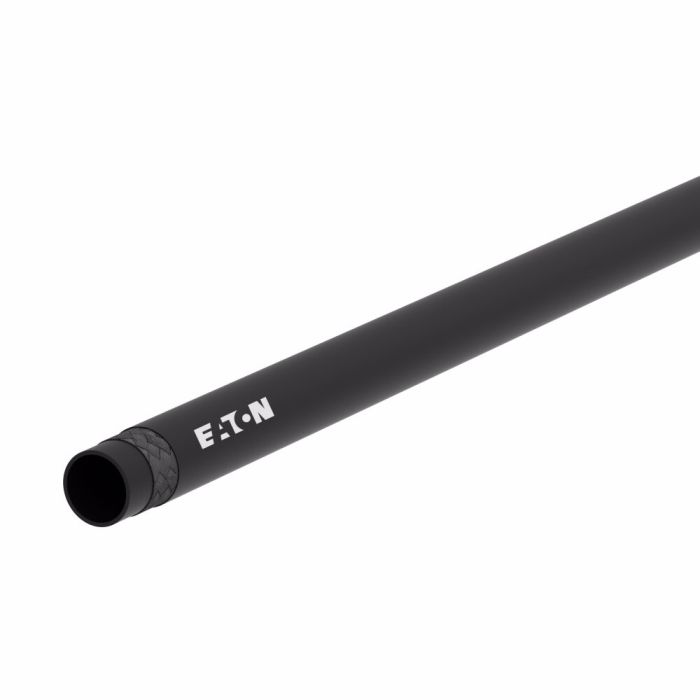

Danfoss / Eaton 3270 Eclipse Air Brake Tubing 3270-06104

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number MI-02528485, Alternate Part Number MINO-00803X00016	Application Truck air brake systems, trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake harness assemblies	Certifications SAE J844\|SAE J2494-2\|SAE J1131	Color Black	Compliances DOT FMVSS 106	Conductivity 13552	Construction Multi Braid	Cover Material Polyester	Dash Size -6	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features Light weight to improve hose flexibility\|Maximum durability under harsh operating conditions\|High quality proprietary blended nylon materials	ICC Hoses and Flexible Tubes	Impulse Cycle Life 125000 cycle	Language English	Minimum Bend Radius 1.50	Minimum Bend Radius 1.5	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 51145	Product Width 0.38	Qualified Hose Fittings QCAB, Push to Connect	Reinforcement Material Synthetic fiber	Sub Brand Synflex	Supplier Part Number 3270-06104	Tube Material Polyamide	Product Weight 0.08 lbs

Product Questions & Answers 1

Product Questions & Answers

got a truck air brake harness to build, will this 3270 Eclipse tubing work for formed and straight runs?

Question by: Chad W on May 4, 2025, 8:03 PM

For air brake harness assemblies, it fits right in. The 3270 Eclipse tubing is listed for truck and trailer air brake systems, auxiliary air systems, and both formed tubes and formed or straight air brake harness assemblies.

Answer by: Customer Support on May 6, 2025, 5:08 PM
