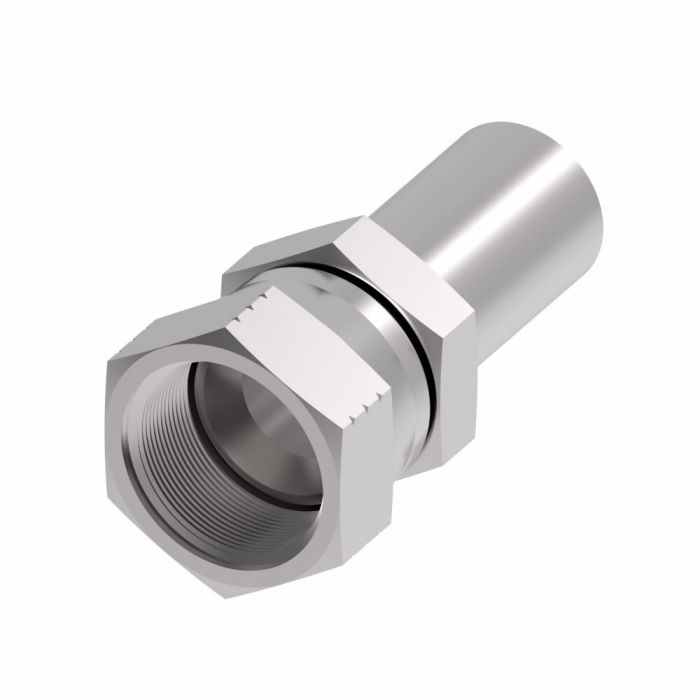

Danfoss / Eaton Everflex Convoluted hose end 32-632-C 37° JIC Swivel NPT Carbon Steel 2 IN Compatible Hose ID 2 1/2 - 12 IN JIC 37 Female

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Type 1 NPTF	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hose Dash Size -32	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	NMFC 50	Product Material Carbon Steel	Product Width 2.61	Sub Brand Everflex	Supplier Part Number 32-632-C	Product Weight 3.00 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting says 2 inch hose dash size but also lists 2 1/2 - 12 compatible hose ID, which one do i go by when matching to my existing hose?

Question by: Tammy M on Nov 5, 2025, 6:09 PM

The -32 dash size refers to the hose end itself, which corresponds to a 2 inch nominal bore. The 2 1/2 - 12 designation describes the JIC thread size on the swivel end, not the hose bore. When matching to your existing hose, go by the dash size. If your current hose assembly runs -32, this fitting is the right one to crimp onto it.

Answer by: Customer Support on Nov 7, 2025, 6:28 AM
