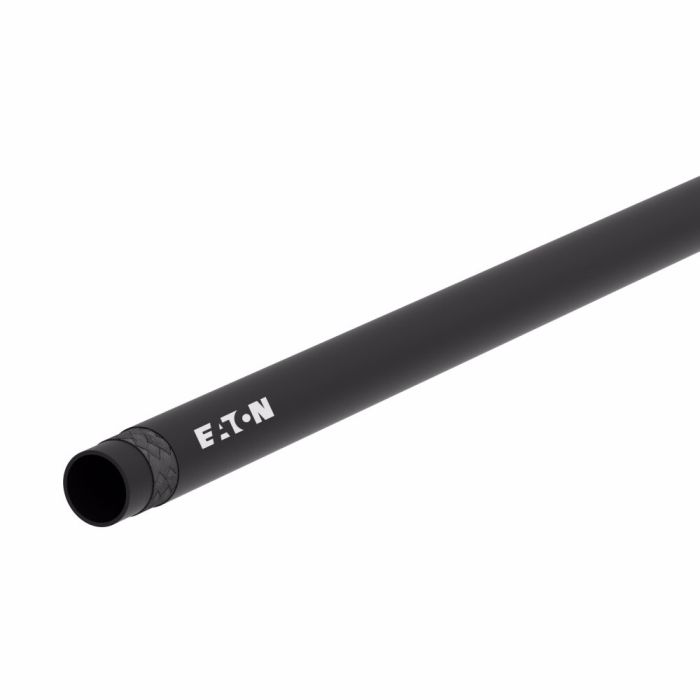

Danfoss / Eaton Synflex HOSE:200'/CTN:RAND:BLACK 3130-12008 3130 Medium Pressure Working Pressure 1250 PSI 3130-12008

Specifications

Abrasion Resistance 28	Application General Hydraulic & chemical transfer	Certifications SAE 100R7	Color Black	Conductivity 30	Cover Material Polyurethane	Cover Style Perforated	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM FT	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 5	Minimum Bend Radius 5	Minimum Working Temperature -40	Product Width 1.07	Qualified Hose Fittings 90A, 9C6, U Series, 903, Z Series W/ Sleeve	Reinforcement Material Synthetic fiber	Supplier Part Number 3130-12-200BX	Tube Material Nylon lined	Product Weight 0.47 lbs

Product Questions & Answers 3

Product Questions & Answers

what fittings work with this hose? got a 3/4 line i'm trying to hook up and don't want to buy the wrong sleeves

Question by: Randy T on May 31, 2025, 4:41 PM

For this hose you'll want to stick with the qualified fitting series: 90A, 9C6, U Series, 903, and Z Series with sleeve. Those are the verified matches for the 3130-12 in the -12 dash size, so a 3/4 line setup should pair up fine as long as you're pulling from one of those series.

Answer by: Customer Support on Jun 2, 2025, 6:03 AM

got a job that calls for 3/4 inch SAE 100R7. is this the right hose and what’s the pressure rating on it

Question by: Johnny J on Sep 27, 2025, 10:34 AM

It’s a -12 dash hose and it’s certified to SAE 100R7, which matches the 3/4 inch SAE 100R7 callout. Working pressure on this 3130 medium pressure hose is 1250 PSI.

Answer by: Customer Support on Sep 29, 2025, 8:18 AM

Will this Synflex hose hold up okay for general hydraulic use around the farm?

Question by: Jerry S on Feb 22, 2026, 8:41 AM

Absolutely, this Eaton Synflex hose is well-suited for general hydraulic applications. It's also designed for chemical transfer, and the polyurethane cover offers premium abrasion resistance.

Answer by: Customer Support on Feb 24, 2026, 7:43 AM
