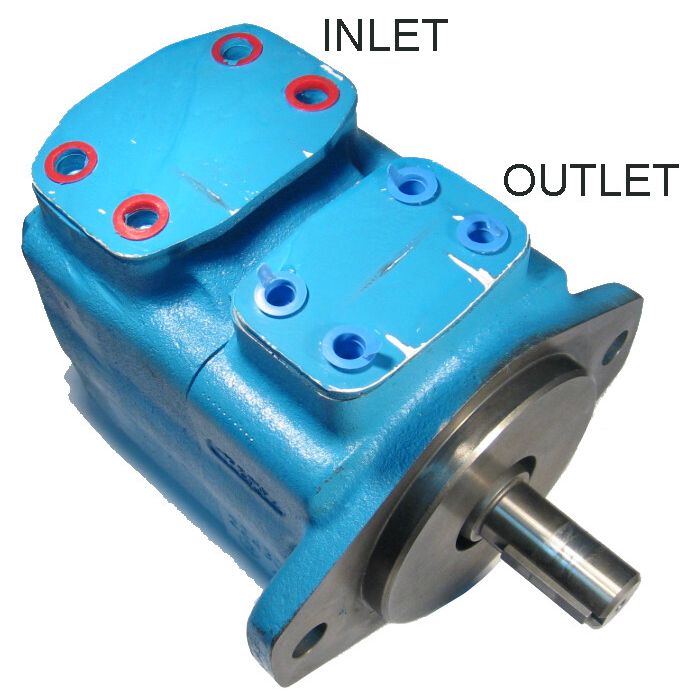

main product photo

30VQ Series Vane Pump, 24 Ring Size, 7/8 Straight Keyed Shaft, Outlet Opposite Outlet, CW Rotation

Ask A Question
Application
Power Steering, Industrial small units and small press etc.
Displacement
4.72
Displacement
4.72
Brand
DANFOSS POWER SOLUTIONS II LLC (VICKERS)
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
Longer operating life|Oustanding volumetric efficiency|Built for high-pressure, high-speed applications
Maximum Pressure
2000
Maximum Pressure
2000
Port Location
Opposite Outlet
Rated Flow
36.78
Rated Flow
36.78
Ring Size
24
Ring Size
24
Rotation
CW
Seal Material
Buna-N
Series
30VQ
Shaft
7/8 Straight Keyed
Shaft
7/8 Straight Keyed
Special Features
None
Speed Rating
2000 RPM
Speed Rating
2000 Rpm
Supplier Part Number
418616-1
Alternate Part Numbers
Alternate Part Number 30VQ24A1A20
Product Weight
32.00 lbs
Product Questions & Answers 3

Product Questions & Answers

Running a small press setup and need something that'll hold up at continuous high pressure, what's this pump rated for before it starts giving trouble?
Question by: Wes M on Sep 7, 2025, 5:04 PM
For pressure, you're looking at a 2000 PSI maximum, and the speed ceiling sits at 2000 RPM. The 30VQ series was built with high-pressure, high-speed industrial work in mind, so those aren't soft limits on a lightly-rated unit. Rated flow comes in at 36.78 GPM with a 24 ring size, which puts it in solid territory for small press and similar industrial applications.
Answer by: Customer Support on Sep 9, 2025, 7:08 AM
got a 30VQ24A1A20 pump on the shelf, is this 418616-1 the same thing or am i gonna be off some
Question by: Earl C on Jan 31, 2026, 11:20 AM
Fit-wise, 418616-1 is cross-referenced to alternate part number 30VQ24A1A20, and the model shown is 30VQ24A-1A20 in the 30VQ series. Key identifiers on this unit are the 24 ring size, 7/8 straight keyed shaft, CW rotation, and the outlet port location listed as opposite outlet.
Answer by: Customer Support on Feb 1, 2026, 12:15 PM
What kinda machines is this pump typically used on?
Question by: Larry B on May 8, 2025, 6:59 PM
It's generally used in power steering systems, smaller industrial units, and small presses.
Answer by: Customer Support on May 10, 2025, 4:08 PM

Similar Products

Part Number Model Number Shaft Displacement Ring Size Rated Flow Port Location Rotation Maximum Pressure Speed Rating Price Buy Now
418616-2 30VQ24A-1B20 7/8 Straight Keyed 4.72 24 36.78 90° CW from Outlet CW 2000 2000 RPM
418616-3 30VQ24A-1C20 7/8 Straight Keyed 4.72 24 36.78 in-Line with Outlet CW 2000 2000 RPM
418616-4 30VQ24A-1D20 7/8 Straight Keyed 4.72 24 36.78 90° CCW from Outlet CW 2000 2000 RPM
418616-5 30VQ24A-1A20-L 7/8 Straight Keyed 4.72 24 36.78 Opposite Outlet CCW 2000 2000 RPM
418616-7 30VQ24A-1C20-L 7/8 Straight Keyed 4.72 24 36.78 in-Line with Outlet CCW 2000 2000 RPM
421490-2 30VQ28A-1B20 7/8 Straight Keyed 5.5 28 42.85 90° CW from Outlet CW 2000 2000 RPM
421490-3 30VQ28A-1C20 7/8 Straight Keyed 5.5 28 42.85 in-Line with Outlet CW 2000 2000 RPM
421490-4 30VQ28A-1D20 7/8 Straight Keyed 5.5 28 42.85 90° CCW from Outlet CW 2000 2000 RPM
421490-5 30VQ28A-1A20-L 7/8 Straight Keyed 5.5 28 42.85 Opposite Outlet CCW 2000 2000 RPM
421490-7 30VQ28A-1C20-L 7/8 Straight Keyed 5.5 28 42.85 in-Line with Outlet CCW 2000 2000 RPM
421490-8 30VQ28A-1D20-L 7/8 Straight Keyed 5.5 28 42.85 90° CCW from Outlet CCW 2000 2000 RPM
421492-2 30VQ28A-11B20 13 Tooth SAE B Splined 5.5 28 42.85 90° CW from Outlet CW 2000 2000 RPM
421492-3 30VQ28A-11C20 13 Tooth SAE B Splined 5.5 28 42.85 in-Line with Outlet CW 2000 2000 RPM
421492-4 30VQ28A-11D20 13 Tooth SAE B Splined 5.5 28 42.85 90° CCW from Outlet CW 2000 2000 RPM
421492-5 30VQ28A-11A20-L 13 Tooth SAE B Splined 5.5 28 42.85 Opposite Outlet CCW 2000 2000 RPM
421492-7 30VQ28A-11C20-L 13 Tooth SAE B Splined 5.5 28 42.85 in-Line with Outlet CCW 2000 2000 RPM
421492-8 30VQ28A-11D20-L 13 Tooth SAE B Splined 5.5 28 42.85 90° CCW from Outlet CCW 2000 2000 RPM
418616-1 30VQ24A-1A20 7/8 Straight Keyed 4.72 24 36.78 Opposite Outlet CW 2000 2000 RPM
421490-1 30VQ28A-1A20 7/8 Straight Keyed 5.5 28 42.85 Opposite Outlet CW 2000 2000 RPM
421492-1 30VQ28A-11A20 13 Tooth SAE B Splined 5.5 28 42.85 Opposite Outlet CW 2000 2000 RPM
