Mdin 24* Series S-Metric Banjo

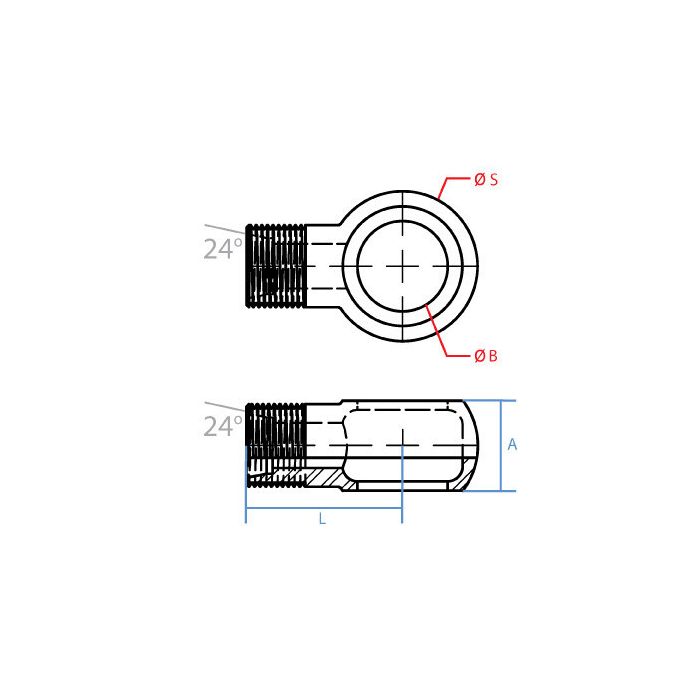

A Misc 22mm	B Misc 20mm	L Length 31mm	Adaptall Material Steel	S Misc 35mm	Adaptall Shape 90° Elbow	Side 1 Callout M20 X 1.5	Side 1 Gender M	Side 1 Size S12	Side 1 Type Din Tube	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069S-20-20	Product Weight 0.18 lbs

Product Questions & Answers 1

Product Questions & Answers

fitting's only 31mm long, will that actually clear up enough room in a tight install where i'm trying to make a 90 degree turn between a DIN tube end and a metric port?

Question by: Brent L on Dec 18, 2025, 9:15 PM

At 31mm overall length with a 35mm cross dimension, it's about as compact as you'll find for a right-angle banjo transition. The 90-degree elbow geometry does the directional work without adding a lot of linear run, so in tight quarters that combination tends to work in your favor. Just account for the 35mm cross dimension when checking clearance on the perpendicular axis, since that's where most people get caught off guard during a tight fit-up.

Answer by: Customer Support on Dec 20, 2025, 7:52 PM
