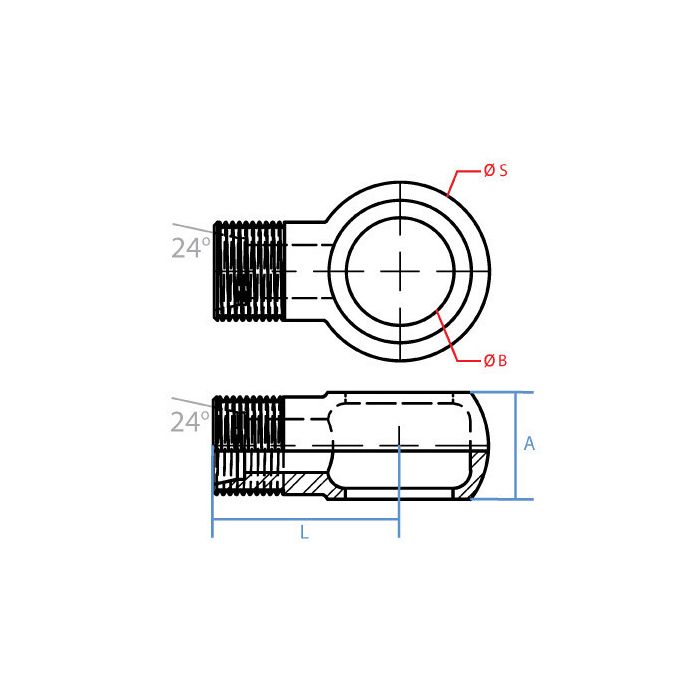

Mdin 24* Series L-Metric Banjo

A Misc
18mm
B Misc
16mm
L Length
28mm
Adaptall Material
Steel
S Misc
28mm
Adaptall Shape
90° Elbow
Side 1 Callout
M16 X 1.5
Side 1 Gender
M
Side 1 Size
L10
Side 1 Type
Din Tube
Side 2 Callout
M16 X 1.5
Side 2 Gender
M
Side 2 Size
16mm
Side 2 Type
Metric
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
3069L-16-16
Product Weight
0.08 lbs

Product Questions & Answers

Got a metric system on a skid-mounted hydraulic unit and need a 90-degree turn in a tight spot. The M16 x 1.5 threads on both sides of this thing gonna work for that kind of setup?
Question by: Dwight A on Jul 2, 2025, 4:52 PM
Both connection points on this fitting run M16 x 1.5 male threads, so if your system is already built around that metric sizing, it should slot right in. The 90-degree elbow geometry is what makes it useful in cramped installs where a straight fitting just won't clear surrounding components. Side 1 handles the DIN Tube connection at an L10 size, while Side 2 is a 16mm Metric connection, so you do get two distinct interface types despite the shared thread callout. Total length runs 28mm, which keeps the overall footprint pretty minimal.
Answer by: Customer Support on Jul 4, 2025, 8:20 AM
