Mdin 24* Series L-Metric Banjo

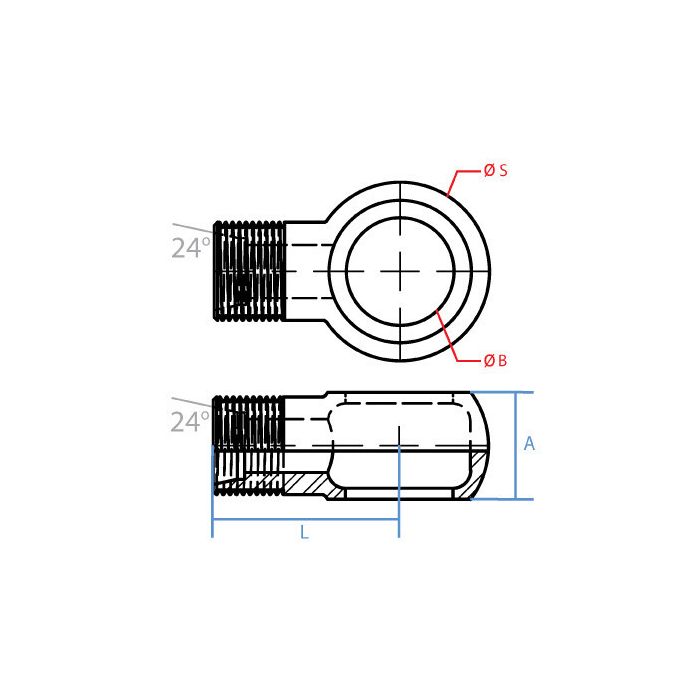

A Misc 14mm	B Misc 14mm	L Length 25mm	Adaptall Material Steel	S Misc 24mm	Adaptall Shape 90° Elbow	Side 1 Callout M14 X 1.5	Side 1 Gender M	Side 1 Size L08	Side 1 Type Din Tube	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069L-14-14	Product Weight 0.06 lbs

Product Questions & Answers 2

Product Questions & Answers

what's the angle on this banjo fitting, and does it come in steel or is it some kind of alloy?

Question by: Lance B on Oct 9, 2025, 2:47 PM

Steel construction, 90 degree elbow shape. Both sides carry an M14 x 1.5 thread callout, with Side 1 being a DIN tube connection and Side 2 metric. The L length runs 25mm and the S measurement comes in at 24mm, so it fits snug into tight routing situations where a straight fitting just won't work.

Answer by: Customer Support on Oct 11, 2025, 11:10 AM

What's the elbow angle on this banjo fitting?

Question by: Janice C on Jul 14, 2025, 6:00 AM

It's a 90° elbow, which makes it handy for tight spots.

Answer by: Customer Support on Jul 16, 2025, 6:45 AM
