Hose Barb-Metric Banjo Low Psi

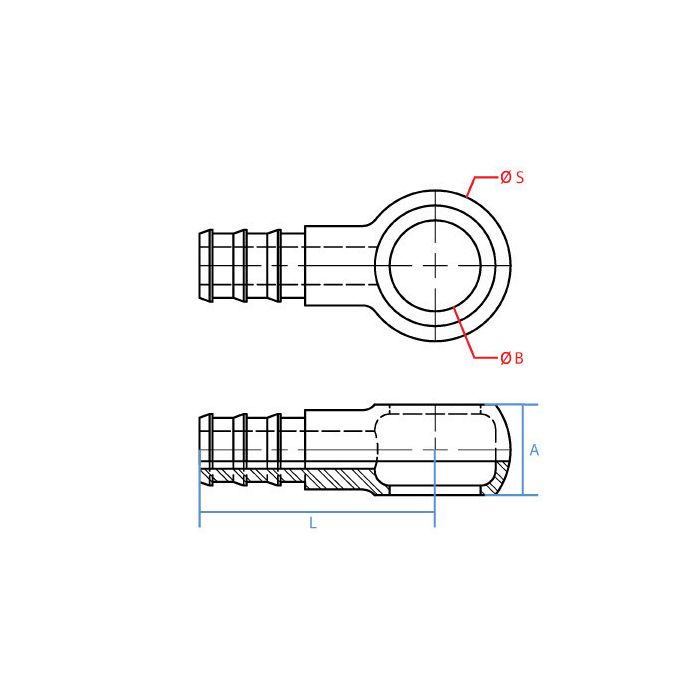

A Misc
18mm
B Misc
16mm
d Diameter
1/2
L Length
42mm
Adaptall Material
Steel
S Misc
28mm
Adaptall Shape
90° Elbow
Side 1 Callout
-
Side 1 Gender
-
Side 1 Size
1/2"
Side 1 Type
Hose Barb
Side 2 Callout
M16 X 1.5
Side 2 Gender
M
Side 2 Size
16mm
Side 2 Type
Metric
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
3069HB-08-16
Product Weight
0.11 lbs

Product Questions & Answers

trying to hook a 1/2 inch hose up to a banjo port, is this the right fitting?
Question by: Lee P on Aug 24, 2025, 4:34 PM
Built for that kind of hookup, it transitions from a 1/2 inch hose barb on one end to an M16 x 1.5 male metric banjo on the other, with a 90 degree elbow to turn the line.
Answer by: Customer Support on Aug 26, 2025, 11:39 AM
fitting's only 42mm long, will that be enough clearance to make a 90 degree turn without kinkin the hose where it connects?
Question by: Earl W on May 26, 2025, 8:46 AM
At 42mm overall, it's a pretty compact elbow, so tight quarters are actually where it tends to shine. The 90 degree angle does the directional work, so your hose runs straight off the barb end rather than bending hard near the port. Whether it clears surrounding hardware depends on your specific setup, but the short body helps in confined spaces more often than it hurts.
Answer by: Customer Support on May 27, 2025, 7:35 PM
