Hose Barb-Metric Banjo Low Psi

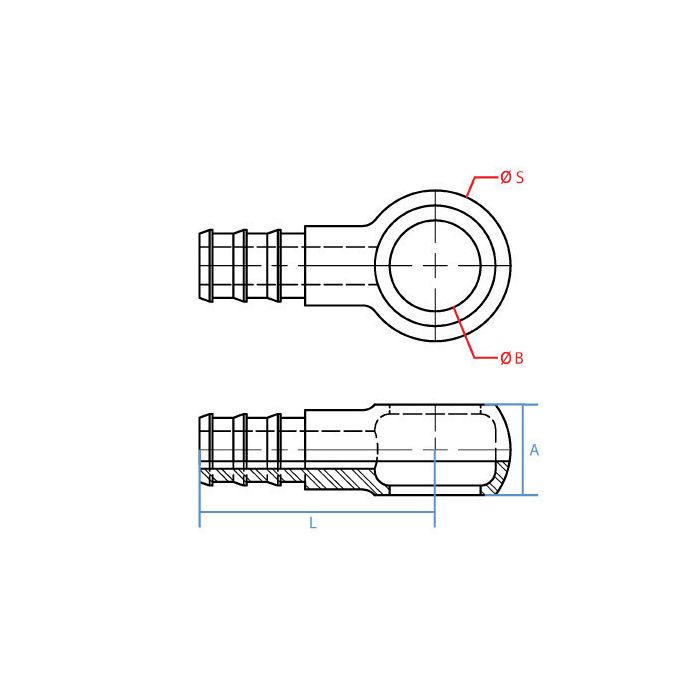

A Misc 14mm	B Misc 14mm	d Diameter 1/2	L Length 38mm	Adaptall Material Steel	S Misc 24mm	Adaptall Shape 90° Elbow	Side 1 Callout -	Side 1 Gender -	Side 1 Size 1/2"	Side 1 Type Hose Barb	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069HB-08-14	Product Weight 0.08 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric banjo port on a pump I'm trying to plumb into some 1/2" hose, this 90 degree fitting gonna bridge that gap?

Question by: Gene E on Dec 1, 2025, 6:18 PM

That's exactly what this fitting is built for. One end is a standard 1/2" hose barb, the other is an M14 x 1.5 male metric thread, and the 90 degree elbow shape lets you route the hose at a right angle off the banjo port. Total length runs 38mm, so it's fairly compact. Steel construction throughout. As long as your port matches M14 x 1.5 and your hose ID is 1/2", you've got a direct fit.

Answer by: Customer Support on Dec 3, 2025, 6:52 AM
