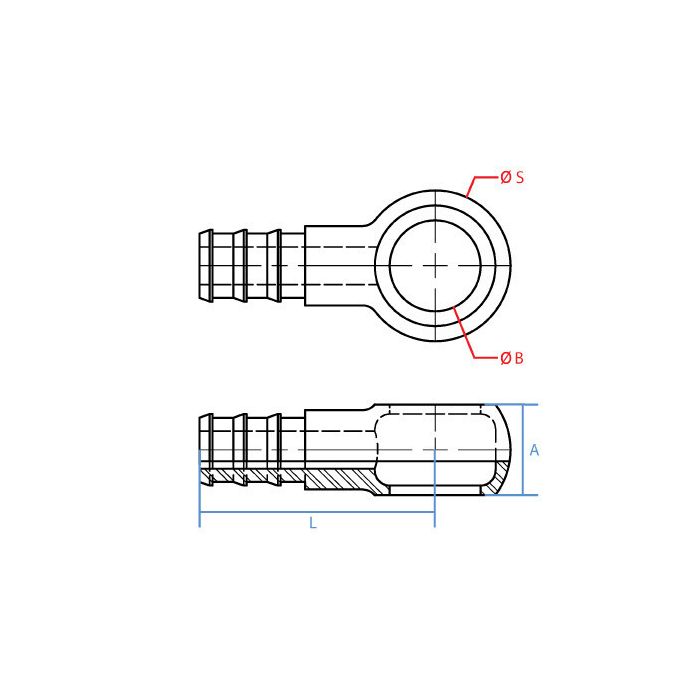

Hose Barb-Metric Banjo Low Psi

A Misc
10mm
B Misc
10mm
d Diameter
3/8
L Length
36mm
Adaptall Material
Steel
S Misc
17mm
Adaptall Shape
90° Elbow
Side 1 Callout
-
Side 1 Gender
-
Side 1 Size
3/8"
Side 1 Type
Hose Barb
Side 2 Callout
M10 X 1.0
Side 2 Gender
M
Side 2 Size
10mm
Side 2 Type
Metric
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
3069HB-06-10
Product Weight
0.02 lbs

Product Questions & Answers

got a tight spot on a piece of equipment where I need a 90 degree turn from a 3/8 hose barb over to an M10 x 1.0 metric port, will this fitting make that connection?
Question by: Patty K on May 4, 2025, 3:49 PM
That's what this one does. One end is a 3/8" hose barb and the other is an M10 x 1.0 metric male connection, and the whole thing is shaped as a 90 degree elbow. At 36mm long, it's built with tight installations in mind, so if you're working in a cramped area and need to make that exact transition, this fitting handles it.
Answer by: Customer Support on May 5, 2025, 7:31 PM
