Hose Barb-Metric Banjo Low Psi

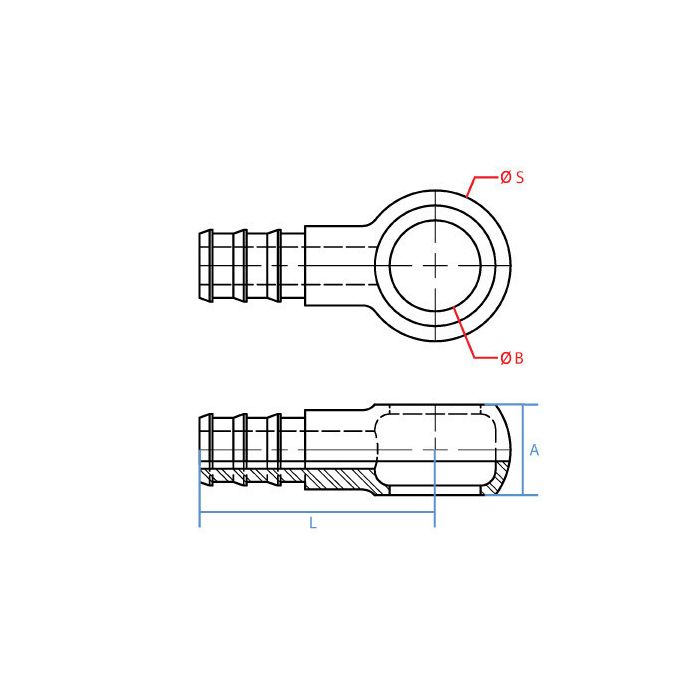

A Misc 10mm	B Misc 10mm	d Diameter 1/4	L Length 36mm	Adaptall Material Steel	S Misc 17mm	Adaptall Shape 90° Elbow	Side 1 Callout -	Side 1 Gender -	Side 1 Size 3/8"	Side 1 Type Hose Barb	Side 2 Callout M10 X 1.0	Side 2 Gender M	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069HB-04-10	Product Weight 0.03 lbs

Product Questions & Answers 2

Product Questions & Answers

got a 3/8 barb on my hose end, will that mate up right with this fitting?

Question by: Ralph B on Feb 27, 2026, 6:50 PM

The hose barb side on this fitting is sized for 3/8 inch hose, so yes, that lines up correctly. The banjo end runs M10 x 1.0 metric thread on the bolt side, and the whole assembly comes in at 36mm long with that 90 degree elbow built in. For low pressure line work where you need to make a right angle turn in a tight spot, this one fits the bill without any extra adapters in between.

Answer by: Customer Support on Mar 1, 2026, 6:08 AM

What size hose will this banjo fitting work with?

Question by: Neil J on Jan 25, 2026, 7:24 PM

This hose barb is designed for a 1/4" inside diameter hose.

Answer by: Customer Support on Jan 27, 2026, 6:01 AM
