Mjic X Metric Banjo 3069-10-24

Specifications

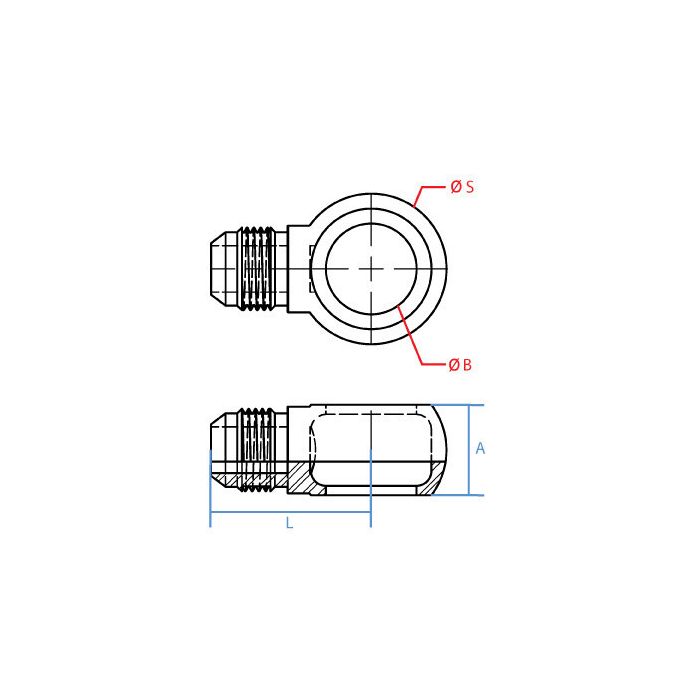

A Misc 25mm	B Misc 24mm	L Length 45mm	Adaptall Material Steel	S Misc 42mm	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M24 X 1.5	Side 2 Gender M	Side 2 Size 24mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-10-24	Product Weight 0.32 lbs

Product Questions & Answers 3

Product Questions & Answers

I need a 24mm metric banjo fitting to go to a 5/8 JIC. Will this work?

Question by: Tammy P on Sep 16, 2025, 6:13 PM

This Adaptall fitting is exactly that, a metric banjo to JIC, with a 24mm metric side and a 5/8" JIC side. Just double check your thread callouts to be sure they match the M24 X 1.5 and 7/8 - 14 UNF.

Answer by: Customer Support on Sep 18, 2025, 12:58 PM

trying to swap a hose end out, is this the one that’s 7/8-14 jic on one side and m24x1.5 on the other?

Question by: Tammy B on Apr 26, 2025, 5:39 PM

Fit comes down to the two thread callouts on the ends. Side 1 is a male JIC with a 7/8 - 14 UNF callout and listed as 5/8 inch size. Side 2 is a male metric banjo connection with an M24 x 1.5 callout and a 24 mm size.

Answer by: Customer Support on Apr 28, 2025, 6:32 AM

Got a metric banjo port on some equipment and need to know if the thread on that side is M24 x 1.5, that what this fitting uses?

Question by: Wes T on Dec 25, 2025, 10:25 AM

M24 x 1.5 is exactly what the metric banjo side runs on this one. The banjo end is 24mm. The other side connects with a 7/8-14 UNF male JIC, so as long as your hose or line terminates in a standard 5/8" JIC male fitting, you're set on both ends.

Answer by: Customer Support on Dec 26, 2025, 9:32 PM
