Mjic X Metric Banjo

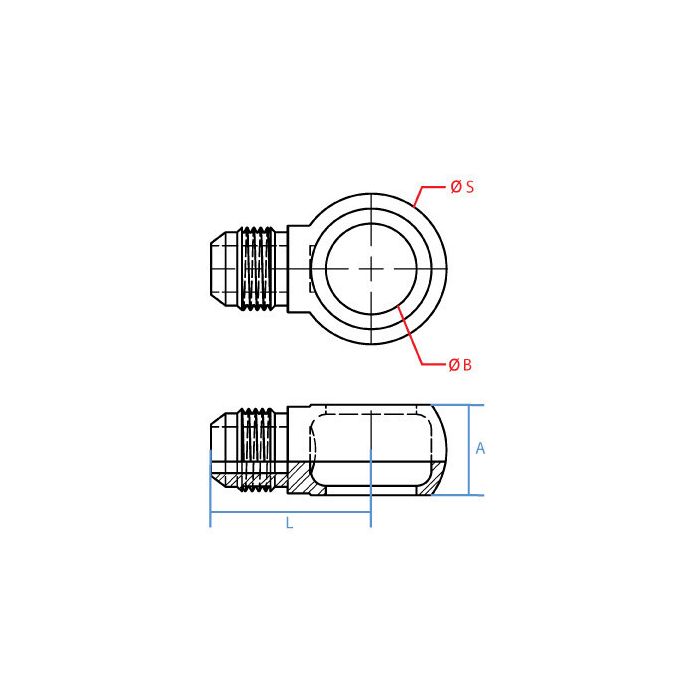

A Misc 22mm	B Misc 22mm	L Length 38mm	Adaptall Material Steel	S Misc 35mm	Adaptall Shape 90° Elbow	Side 1 Callout 7/8 - 14 UNF	Side 1 Gender M	Side 1 Size 5/8"	Side 1 Type Jic	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-10-22	Product Weight 0.18 lbs

Product Questions & Answers 2

Product Questions & Answers

trying to hook a JIC line up to a metric port, is this the adapter that goes 7/8-14 UNF to M22x1.5?

Question by: Cody J on Oct 23, 2025, 9:30 PM

For bridging those two standards, it mates a 7/8 - 14 UNF male JIC end on one side to a M22 x 1.5 male Metric end on the other.

Answer by: Customer Support on Oct 25, 2025, 2:21 PM

Got a piece of equipment running M22 x 1.5 metric ports and need to tie into some JIC lines. This fitting work for that kind of crossover?

Question by: Danny C on Dec 8, 2025, 6:10 PM

That's what this one's built for. One end is a 7/8-14 UNF male JIC and the other is an M22 x 1.5 male metric, so it bridges those two thread standards without any adapters in between. The 90-degree elbow shape also gives you some room to work when your ports aren't pointing the right direction, which comes in handy on tighter installs.

Answer by: Customer Support on Dec 10, 2025, 6:04 AM
