Mjic X Metric Banjo

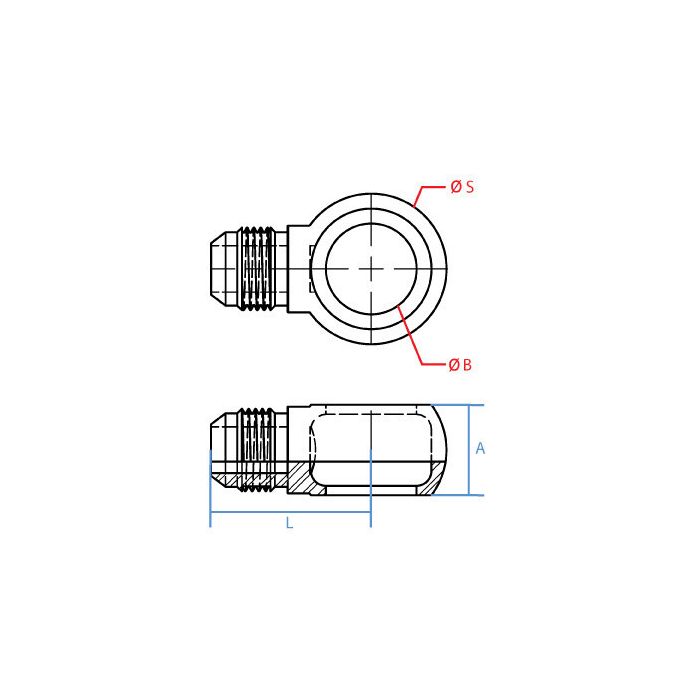

A Misc 22mm	B Misc 20mm	L Length 35mm	Adaptall Material Steel	S Misc 35mm	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M20 X 1.5	Side 2 Gender M	Side 2 Size 20mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-08-20	Product Weight 0.18 lbs

Product Questions & Answers 1

Product Questions & Answers

trying to swap a line over, is this the elbow that goes from a 1/2 JIC male to an M20 x 1.5 banjo bolt setup?

Question by: Peggy E on Sep 1, 2025, 6:02 PM

For that kind of swap, it matches a 1/2 inch Male JIC on one side with a 3/4-16 UNF thread, and an M20 x 1.5 Male metric banjo on the other side sized for a 20 mm bore.

Answer by: Customer Support on Sep 3, 2025, 6:00 AM
