Mjic X Metric Banjo 3069-08-18

Specifications

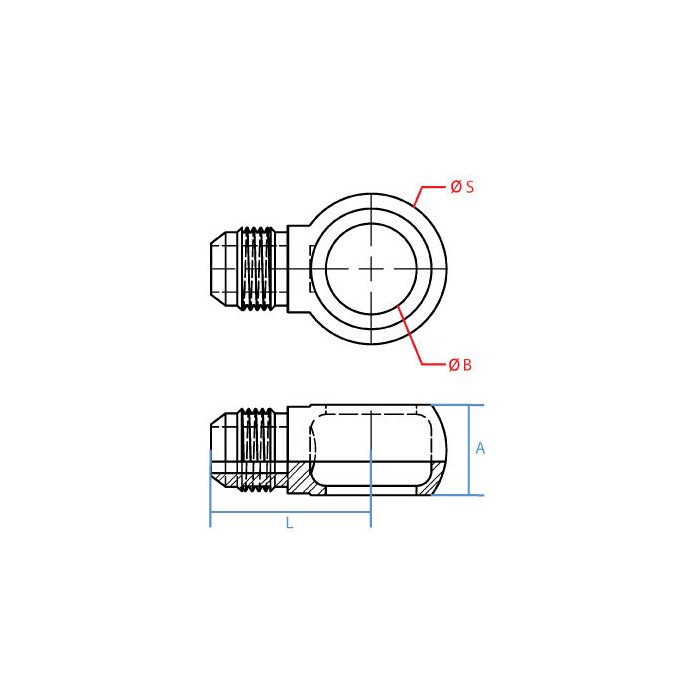

A Misc 20mm	B Misc 18mm	L Length 37mm	Adaptall Material Steel	S Misc 32mm	Adaptall Shape 90° Elbow	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout M18 X 1.5	Side 2 Gender M	Side 2 Size 18mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-08-18	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

what's the thread size on the metric side of this fitting? need to make sure it matches up with what i got on my equipment

Question by: Freddie P on Sep 3, 2025, 10:49 AM

The metric end runs M18 x 1.5, which is an 18mm male metric thread. The JIC side is 3/4-16 UNF, also male, sized at 1/2 inch. Both ends are male, so keep that in mind when you're planning your connections.

Answer by: Customer Support on Sep 4, 2025, 11:58 AM

So this is a 90 degree elbow, right? Just want to make sure before I order.

Question by: Joyce P on Dec 31, 2025, 1:45 PM

That's correct, this Adaptall fitting is a 90-degree elbow, designed to connect a 3/4 - 16 UNF JIC male end to a M18 X 1.5 metric male end.

Answer by: Customer Support on Jan 2, 2026, 12:18 PM

trying to swap a fitting out, is this one a 90 degree elbow with a 3/4-16 UNF JIC male on one side and M18x1.5 metric male on the other?

Question by: Tommy A on Apr 21, 2025, 7:14 PM

For a right angle connection, it’s a steel 90° elbow with a Side 1 JIC male thread at 3/4 - 16 UNF (1/2 inch size) and a Side 2 metric male thread at M18 x 1.5 (18 mm size).

Answer by: Customer Support on Apr 22, 2025, 7:15 PM
