Mjic X Metric Banjo

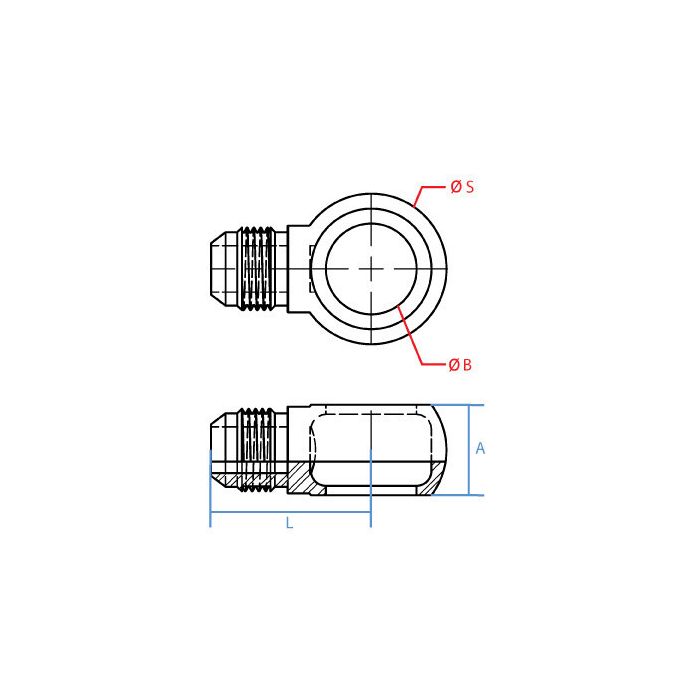

A Misc 16mm	B Misc 16mm	L Length 33mm	Adaptall Material Steel	S Misc 28mm	Adaptall Shape 90° Elbow	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3069-06-16	Product Weight 0.09 lbs

Product Questions & Answers 2

Product Questions & Answers

So, this thing's got metric on one side and JIC on the other? Just wanna be sure before I order.

Question by: Gene F on Aug 31, 2025, 8:16 AM

That's right. This elbow connector features a 9/16 - 18 UNF male JIC fitting on one side, and an M16 X 1.5 metric male fitting on the other.

Answer by: Customer Support on Sep 2, 2025, 6:17 AM

got a metric banjo fitting on some equipment and need to tie it into a JIC line, this 90-degree elbow gonna make that work?

Question by: Brent W on Dec 15, 2025, 7:07 PM

That's exactly the kind of crossover situation this fitting handles. One end is a 9/16-18 UNF male JIC, the other is M16 x 1.5 male metric, so you're covered on both sides. The 90-degree angle keeps things clean when you're working in tight spots and can't run a straight connection. Steel construction, 33mm in length, with both A and B dimensions at 16mm. Just make sure your mating ports match those specs before you button it up.

Answer by: Customer Support on Dec 17, 2025, 9:24 AM
